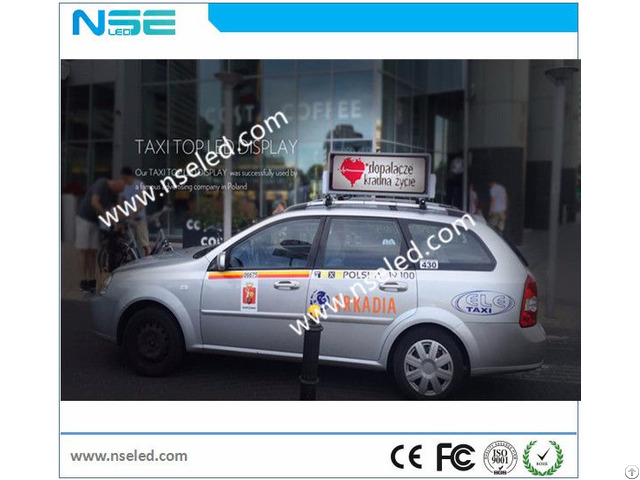

Taxi Top Advertising Led Display Sign - China

Taxi Top Advertising LED Display Sign 1 - Specifications: Model Type: P2.5 P3 P5

Pixel Pitch 2.5 mm 3mm 5mm

LED Type SMD 2121 SMD1921 SMD 2727

Pixel Density 160, 000 dot/ m2 111, 111 dots 40000 dot/ m2

Module Size 160*160mm 192*96 160*160mm

Frame Size 1100mm( L) x 410mm(H) X W: 164mm(bottom)/ 99mm (top) 820mm( L) x 390mm(H) X W: 170mm(bottom)/ 99mm (top) 1100mm( L) x 410mm(H) X W: 164mm(bottom)/ 99mm (top)

Frame Materials Aluminum Aluminum Aluminum

Screen Size 960mm*320mm 768mm*288mm 960mm*320mm

Screen Resolution 384*128 dot 256*96 dots 192*64 dot

Brightness >=5000 nit >=3500 nit >=5500 nit

Contrast >8000: 1 >8000: 1 >8000: 1

View Angle 150°(H)/150°(V) 150°(H)/150°(V) 150°(H)/150°(V)

Scan Mode 1/16 scan 1/32 scan 1/8 scan

Power Supply Input DC9--24V DC9--24V DC9--24V

Max Consumption 420w 270w 450w

Average Consumption 130w 90w 150w

Optimal Viewing Distance 1--20M 3--20M 5--50M

Driving ICs: ICN2038 ICN2038 ICN2038

MTBF 10, 000 Hours 10, 000 Hours 10, 000 Hours

Frame Frequency 60-85HZ 60-85HZ 60-85HZ

Fresh Frequency >1920HZ >1920HZ >1920HZ

Control Method Asynchronous Asynchronous Asynchronous

Control Mode 3G/4G/WIFI/ Ethenet/ USB 3G/4G/WIFI/ Ethenet/ USB 3G/4G/WIFI/ Ethenet/ USB

Temperature Operating -40°~+70° -40°~+75° -40°~+75°

Working Humidity 10%-90%RH

Screen Protection Waterproof, rust-proof, dust-proof, anti-static, anti-mildew

Power Protection over-temperature/over-cur rent/ over-voltage protection

Package Honeybox

Package Dimension 1100mm(L) X 500mm(H) X 270mm(W)

Screen Weight: 24 kg 15kg 23kg

Gross Weight: 31 kg 22Kg 30kg

Certificates CE.

ROHS CE.

ROHS CE.

ROHS
