Step Plated Pcb - China

price: 1.00 Dollar US$

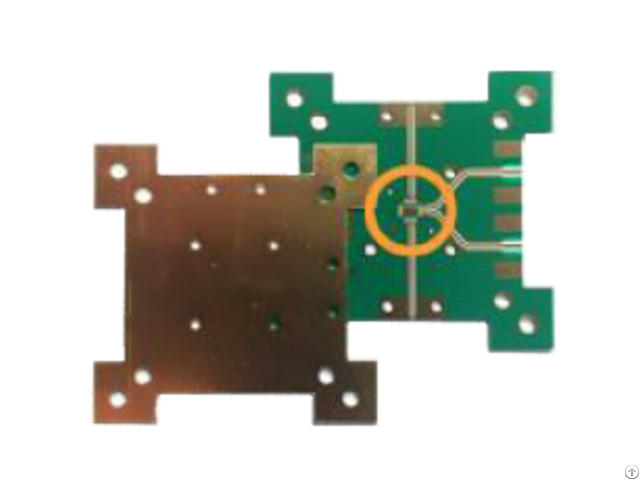

Step Plated Pcb

Products Photos Catalog Step Plated Pcb Photos Catalog

Methods and Processes

During the traditional PCB production process, we need use the film for image transfer.

When the image transfer, we need make sure that the film affix to the copper clad, or it will cause ultraviolet rays refraction and short or open circuits because the failed conductor pattern transfer.

Because the copper thickness of the selective area is thicker than the other areas, it is hard to ensure the accuracy of the image transfer.

During the circuit process, we are not able to use the normal processing.

In fact, this problem will also happen during soldermask and screen printing processes.

KingCredie apply a special way which called the secondary plating.

We can meet the customers’ requirement by plateing the pads of the selective areas, and we use the advanced LDI exposure machines.

So we cancel the film directly and ensure the precision of the soldermask and circuit.


Company Contact:


  • Phone: 86-755-23110700

  • Address: Building 5, Tongtai Time, No 6259 Baoan Avenue, Baoan District, Shenzhen, Shenzhen , Guangdong , China

  • Email: Email


Published date: April 13, 2019

  • Business Description: rigid printed circuit board, flex circuit boards, such as capacitive boards, module boards, soft cabling boards, battery boards, keypad boards, LED light bar boards, backlight boards and so on.
