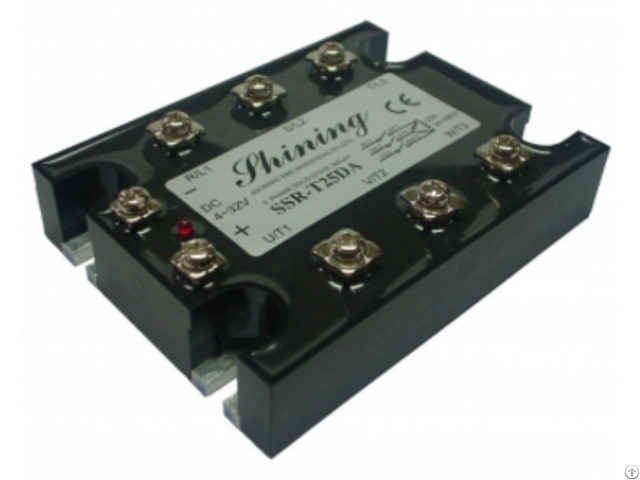

Ssr T25da 25a Three Phase Solid State Relay - Taiwan

1 - Shining SSR-TXXDA-(H) Series Three Phase Solid State Relays.

2 - DC to AC

3 - Maximum Load Current: 25A/ 40A

4 - Control method: Zero Cross

5 - Optional Accessories and Parts: Protective Cover, Heat Sinks, and Fans

General Product Information:

1 - Item number: SSR-T25DA

2 - Output Load Current: 25A

3 - Output Load Voltage Range: 24~280VAC

4 - Operate InputCurrent: 4~32VDC

5 - Specification: 103 x 79 x 27 mm

Product Features

1 - 600V Transient Capability

2 - Low EMI/EFI & Surge by zero cross trigger control.

3 - High Isolation over than 50MΩ/500VDC

4 - Panel Mounting

5 - LED Input status Indicator

6 - Integrated with removable tinger-proof cover SSR-T-CV

7 - Fast reaction, high reliability and long life

8 - No switching speaks, no noise, and no contact points.

9 - Excellent for switching control of switchboard panel, heaters, printers, machines, UPS

10 - CE Compliant.
