Simulated Environmental Ozone Aging Test Chamber For Rubber - China

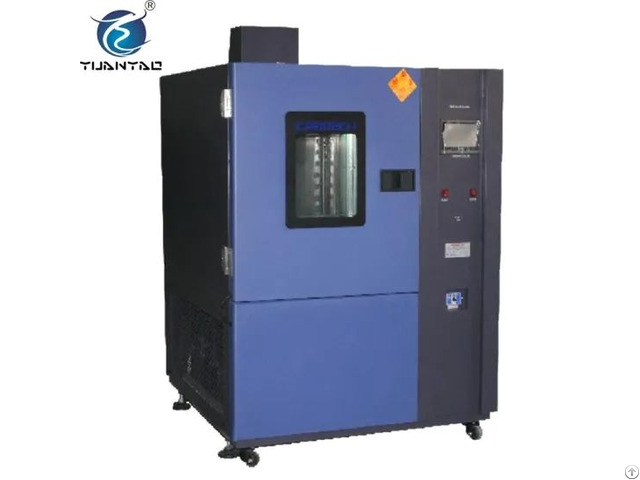

0~1000 Pphm ozone aging test chamber for rubber tyre Descriptions:

Ozone aging test chamber is a climate modeling equipments, suitable for testing compatibility of unvulcanized rubber and other products under non-direct light, exposing to ozone-containing air and certain environment.

It can be applied to scientific research stitutes and plants to do aging test for sample.

Features:

Ozone aging machine simulates and strengthens the conditions of atmosphere ozone, study the role of the law of ozone on rubber, rapidly identification and evaluation of rubber resistance to ozone aging properties and protective efficacy of anti-ozone agents, and then take effective anti-aging measures to improve the life of the rubbers.

Technical specifications: Model YOT-800 YOT-408

Internal Dim.

W×H×D(mm) 1000*1000*800 600*850*800

External Dim.

W×H×D(mm) 1450*1900*1350 1050*1750*1350

Temp.

Range RT-80°C

Humi.

Range 45%RH-98%RH

Performance Temp.

&Humi.

Constancy ±0.2°C, ±0.5%RH

Temp.

&Humi.

Uniform ity ±0.1°C

Temp.

&Humi.

Resolution 0.01°C, 0.1%RH

Ozone Concentration 0-100 PPHM

Ozone control accuracy ±10%

Ozone production Static emissons

Sample rotating speed 1 time/min

Material Exterior Stainless steel plate+powder coated

Interior SUS#304 stainless steel plate

Insulation PU&Fiberglass Wool

Ozone analyzer Imported ozone density analyzer

Ozone generator Silent discharge type ozone generator

Systems Circulation Siroco fan

Heating SUS#304 stainless steel high-speed heater

Humidifying Surface evaporating system

Cooling Imported compressor, finned type evaporator, air-cooling condenser

Dehumidifying ADP critical dewpoint cooling/dehumidifying methord

Controller Digital electronic indicators+S.S.R with PID automatic calculation capability

Other Components Vacuum glass inspection window, cable for(50mm), control status indicator lights, chamber lamp, loading shelves(2pcs for free)

Safety Devices Overheating circuit-breaker, compressor overload protection, control system overload protection, hunidifying system overheating prevention, breakdown indicator light

Power Source(K.W.) AC 1Ψ220V; 3Ψ 380V 60/50Hz

Customization Customization of inner chamber size, temperature range, etc.

Besides ozone aging test chamber, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply: Precision Oven Tester, Triple Type Temp.

& Humidity Chamber, Temp.

& Humidity Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp.

Humidity &Vibration Combined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
