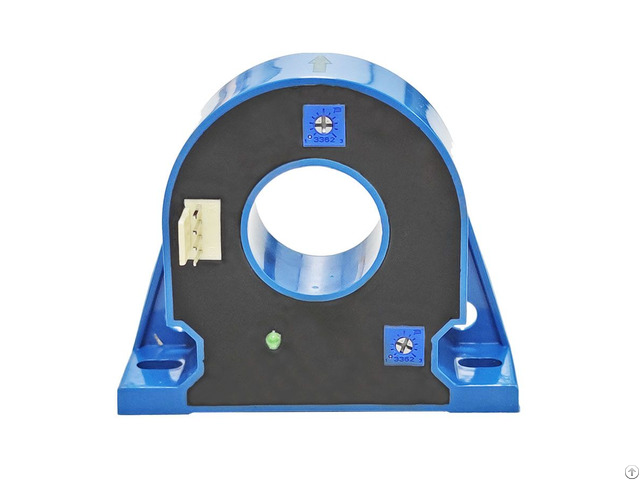

Rit01m 0 2% Accuracy Residual Current Transducer - China
price: 239.00 Dollar US$
RIT01M has a high gain and measurement 0.2% accuracy in the broad bandwidth range, due to the application of the multi-point zero-flux technology system and high-frequency ripple sensing channel on topof currently existing DC sensor technology.
Accuracy: 0.2%.
Linearity: 0.1%.
Zero Offset Voltage: ±10mV.
Dynamic Response Time: 2ms.
Frequency bandwidth(-3dB): up to 100KHz.
Insulation Voltage (Between primary and secondary): 5KV.
Operation Temperature Range: -40 ~ 85℃.
RIT series leakage current transducer is designed for residual and micro current measurement from 0.01A to 10A, and output with voltage.
It has been used for vacuum coating and data center power supply systems.
Company Contact:
- Phone: +86 755 82593440
- Address: Room 330, Building B, Huayuan Hi-tech Pioneer Park, Baoyuan Rd, Bao An District, ShenZhen, Guangdong, shenzhen , guangdong , China
- Email:
- Website: https://www.hangzhiprecision.com/
Published date: September 19, 2024 - Modified date: October 9, 2024
- Business Description: Shenzhen Hangzhi Precision Electronics Co., Ltd was founded in October 2017 - Hangzhi located in Shenzhen, design and manufacture a wide range of high precision AC DC current transducers, voltage transducers and testers to meet the needs of different industries, such as medical, railway, renewable energy, EV/HEV charging stand and calibration & testing etc.
Our products are based on fluxgate technology and have the characteristics of high precision, low zero drift, low temperature drift and full range.
