Rfid Desktop Reader Mr811 - China

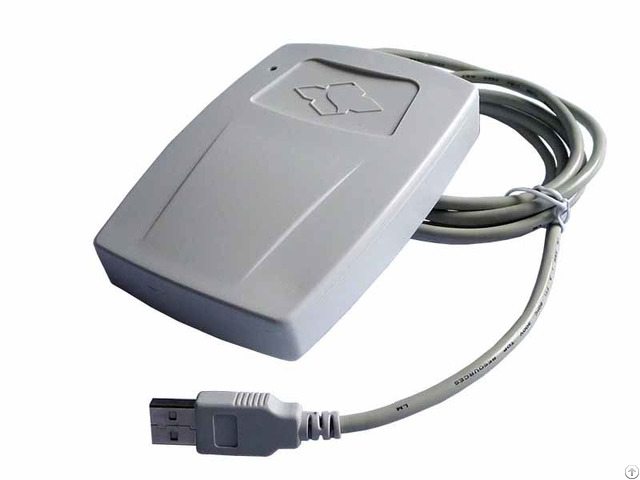

MR811 series desktop contactless IC card reader/writer is based on NXP series RF chip with high performance ARM7 MCU.

The communication is according to USB PC/SC standard.

The reader fully supports the IC card according to ISO14443 standard, especially completely supports ISO14443-4 contactless CPU card.

The reader builds in 2 SAM slots, and fully supports SAM according to ISO7816.

Main Characteristics

• True USB PC/SC interface, compatible with many PC/SC readers in the market

• High speed ARM7 MCU and advantage firmware provide very high card process speed

• RF interface and protocol process with EMV2010 LEVEL 1 certification ability Technical parameters

• PCD: NXP MF RC531

• Working frequency: 13.56MHz

• RF standard: ISO14443A, ISO14443B

• Operating distance: 100mm (MIFARE One, typical)

• SAM slot: 2 slots, terms ISO7816 (T=0 & T=1, terms PPS, Max.

230400bps)

• Display: 1 tri-color LED

• Buzzer: Build in

• Data FLASH: 4 Mbytes

• Interface: USB PC/SC standard

• Power supply: DC5V ± 10%

• Power consumption: 0.9W

• Dimension: 123mm * 88mm * 25mm

• Weight: About 100g

• Operating temperature: -25 ~ +85 ℃ (-77 ~ +185°F)

• Storage temperature: -40 ~ +125 ℃ (-104 ~ +257°F)

• PC software: PCSC Communication Tool

• SDK: Base on Windows, free

• Sample code: VC, VB, C++ Builder, DELPHI, Power Builder

• ISP: Terms

• RoHS: Compliant
