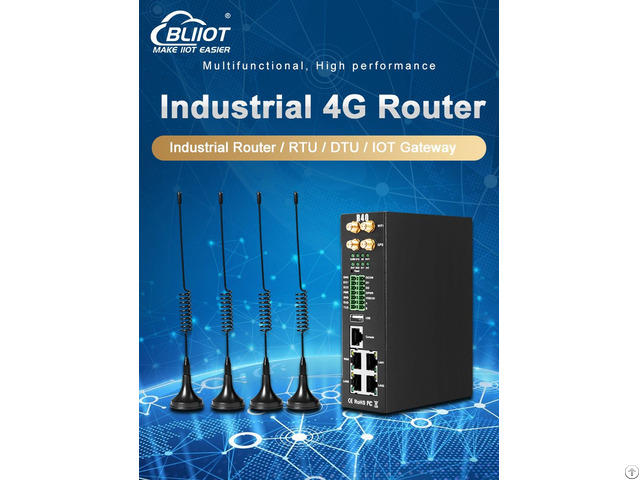

R40b Wireless Tunnel Monitoring Cellular 4g Lte Industrial Iot Edge Router - China
price: 254.31 Dollar US$
Industrial cellular router R40 is compatible with Huawei cloud, AWS IoT Core, MQTT, OPC UA, PLC protocol, Modbus TCP and Modbus RTU Master / Slave.
Widely used in industrial wireless IoT applications.
1 - Can be operated from anywhere, no distance limitation;
2 - Dual-Simcard redundancy design supports 3G/4G LTE networks;
3 - Embedded 580MHz MIPS 24KEc CPU with Linux OpenWRT system;
4 - Wide range power supply 9~57VDC with over-voltage and phase-reversal protection;
5 - Supports 2.4G WIFI AP and STA mode, comply with 802.11a/b/g/n(mixed);
6 - 1 RJ45 for WAN Port, 3 RJ45 for LAN Port, supports 10/100M, MDI/MDIX;
7 - 4 Analog inputs(16bits), 2 DO, 2 DI, 1 RS485, 1 RS232;
8 - Inbuilt inter-lock logic programmer and powerful timer program function;
9 - Resend data while communication failure.
10 - Monitoring Network connection status and alarm by SMS;
11 - Support VPN security tunneling, including PPTP, L2TP, OPENVPN;
12 - Support ARP, DDNS, DHCP, DNS, HTTP, HTTPS, ICMP, PPP, PPPoE, SMTP, SNTP, SSL, TCP/IP, Telnet, UDP protocols;
13 - Supports Modbus RTU Master, Modbus TCP Master, DLT645, IEC104, PLC Protocols;
14 - Supports Modbus TCP, MQTT, AWS IOT, Aliyun IoT, and other IoT protocols;
15 - Support 3 POE power output Compatible with IEEE802.3at / af standards
Single POE maximum output power 30W;
16 - Intelligent anti-drop line, support online detection, online maintenance, ensuring that the device is always online;
17 - using metal shell, protection class IP30 - Metal shell and system security isolation, especially suitable for industrial applications in the field;
18 - L145 * W110 * H45mm, compatible wall installation, and DIN35mm industrial rail installation;
19 - Support Connection to Cloud Platform: Private Cloud ( KPIIOT or Custom MQTT cloud), Alibaba Cloud Platform, AWS Cloud, Huawei Cloud, Thingsboard Cloud Platform.
Company Contact:
- Posted By: Bliiot
- Phone: 075529451836
- Address: 2F, A2 Building, Fuhai Information Port, Xinhe Community, Fuhai Street, Baoan, Shenzhen, China, Shenzhen , Guangdong , China
- Email:
- Website: https://www.bliiot.com/
Published date: April 11, 2023
- Business Description: Shenzhen Beilai Technology Co., Ltd. specializes in LTE Industrial Router, Industrial IoT Gateways, IIOT Gateways, 4G Industrial Router, Cellular RTU, 4G RTU, PLC Gateways, Ethernet IO Module, ARM Industrial Computer, OEM ODM Since 2005.
Our Products:
- Digital City Ethernet Remote Edge Modbus Tcp I O Module
- Digital Factory Ethernet Remote Opc Ua I O Module
- Digital Building Mqtt Distributed I O Controller
- Digital City Mqtt Opc Ua Remote Edge Modbus Tcp I O Module Bl200pro
- Ethercat Ethernet Remote Edge Modbus Tcp I O Module Bl200ec
