    • Quick Turn Hdi Multilayer Pcb - China

    price: contact company for price

    Quick Turn Hdi Multilayer Pcb

    Products Photos Catalog Quick Turn Hdi Photos Catalog

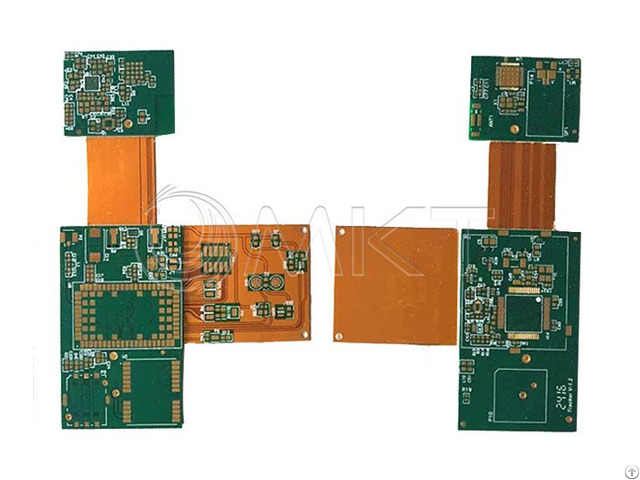

    Quick Turn HDI Multilayer PCB

    Flexible-Rigid PCB

    Layer Count/Technology 4-20 layers 4-20layers

    PCB Thickness Range 0.5-2.4MM 0.4-2.4MM

    Build Up Technology 1-N-1 / 2-N-2 / 3-N-3 / 4-N-4 1-N-1 / 2-N-2 / 3-N-3 / 4-N-4 / 5-N-5 / 6-N-6 / 7-N-7

    Min.

    Laser Drill Diameter 110μm 75μm

    Laser Techlology CO2 Direct Drilling(UV/CO2) CO2 Direct Drilling(UV/CO2)

    Materials FR4/FR4 Halogen Reduced FR4 / Taconic / Rogers / Others on request

    Class Transition Temperature 140℃ / 150℃ / 170℃ 140℃ / 150℃ / 170℃ / 200℃

    Standard Glass Cloth 1027/106 / 1080/2116 / 1501/7628 1037/106 / 1080/2116 / 1501/7628 / 1027/

    Copper Thickness 12μm/18μm/35μm/70μm 9μm/12μm/18μm/35μm/70 μm/105μm

    Copper Plating Holes 20μm(25μm) 13μm / 20μm / 25μm

    Min.

    Line/ Spacing 60μm / 60μm 40μm / 40μm

    Soldermask Registration 70μm 60μm

    Min.

    Soldermask Dam +/-38μmPhoto-imageable) +/- 25μm(Photo-imageable)


    Soldermask Color Green / White / Black / Red / Blue Green /White / Black / Red / Blue

    Max.

    PCB Size 575mm × 500mm 575mm × 500mm

    Production Panel 609.6mm × 530mm 609.6mm × 530mm

    Min.

    Annular Ring 125μm 100μm

    Smallest Drill 0.28mm 0.15mm

    Smallest Routing Bit 0.8mm 0.8mm

    Surfaces OSP/Immersion Tin OSP/Immersion Tin

    Immersion NI/AU Immersion NI/AU Plated Ni/AU Plated Ni/AU immersion AG immersion AG Scoring Yes Yes

    ID Print White White


    Company Contact:


    • Phone: 86-0755-27347385

    • Address: Longwangmiao 88 Industrial Park, Block B, 2nd Floor,Fuyong Town, Bao'an District, Shenzhen , Guangdong , China

    • Email: Email


    Published date: March 27, 2018

    • Business Description: MKTPCB is a professional and reliable one-stop PCB solution company.

      We provide clients with seamless prototype service, high-precision single, double-side multilayer printed circuit boards (up to 20 layer), LED Aluminum PCB, HDI PCB, High-TG PCB, Thick copper PCB, Flexible, PCB design, material sourcing, PCB assembly, end-to-end logistics and after-sales service

      Since the establishment of the company, we have built very good relationship with many different customers.

      Following the goal of our Company : Quality and Customers come help us get good reputation.

      The production capacity of PCB can achieve 1000, 000 square meters per year.

      The sales performance for PCBA is more than $120, 000.
