    • Polarization Maintaining Optical Fiber Faraday Isolator 1064nm 2w - China

    price: 40.00 Dollar US$

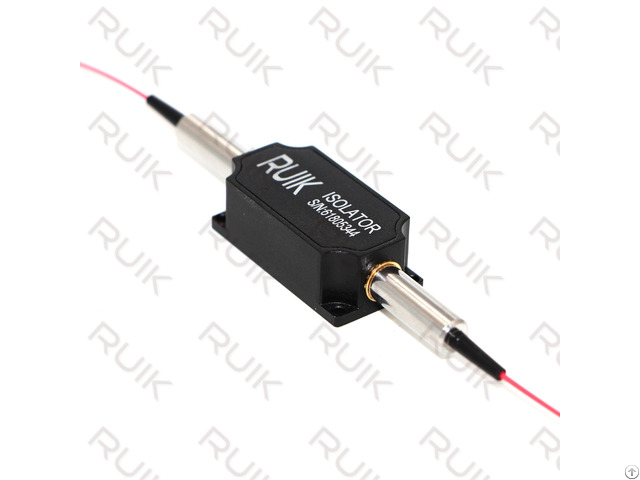

    Polarization Maintaining Optical Fiber Faraday Isolator 1064nm 2w

    Products Photos Catalog Polarization Photos Catalog

    Ruik's polarization maintaining optical isolator is a device, which allows the light to transmit through the passive route from input to output, while blocking the reversed direction Other name：

    1064nm isolator 2W, in line isolator, in line faraday isolator, fiber isolator, PM fiber isolator, fiber to fiber isolator, 1064nm faraday isolator, 1064nm PM isolator, optical isolator Parameters：

    Center Wavelength (nm) 1064

    Operating Wavelength Range (nm) ±5

    Typ.

    Peak Isolation at 23℃ (dB) 35

    Min.

    Isolation at 23℃ (dB) 28

    Max.

    Insertion Loss at 23℃ (dB) 1.7

    Max.

    Insertion Loss at 23℃ and Input Power 300 mW (dB) 2.0

    Max.

    Insertion Loss at 23℃ and Input Power 1 W (dB) 2.5

    Max.

    Insertion Loss at 23℃ and Input Power 2 W (dB) 3.0

    Max.

    Polarization Dependent Loss at 23℃, only for PI (dB) 0.2

    Min.

    Extinction Ratio at 23℃, only for PM (dB) 20

    Min.

    Return Loss(Input /Output) (dB) 45

    Max.

    Average Optical Power (W) 2

    Max.

    Peak Power for ns Pulse (kW) 10

    Max.

    Tensile Load (N) 5

    Operating Temperature (℃) +10 to +50

    Storage Temperature (℃) 0 to +60


    Company Contact:


    • Phone: 18929412926

    • Address: Floor 4, Building A, ZhaoHe Industrial Park,, Dongguan , China , China

    • Email: Email


    Published date: April 12, 2020

    • Business Description: RUIK- Tech Communication is a manufacturer and supplier of Optical Passive Components with ISO9001: 2015 certified.

      We design advanced and cost- effective passive components for various industries which include Fiber Laser, Sensing Applications, CATV, Telecommunication, Medical Systems, Gyroscope, etc.

      Our main products include High Power Components up to 100W (20kW), Polarization Maintaining (PM) and Single- mode Fiber Components with ranging from 780nm to 2000nm.

      We also provide Customized components to our customers.

      High power Optical Fiber Components:

      - Optical Fiber Isolator, up 100W

      - Free Space Isolator, up to 100W

      - Optical Circulator, up to 30W

      - Pump Laser Protector

      - Band Pass Filter

      - Nx1 Pump Combiner

      - Cladding Power Stripper

      - Mode Field Adapter

      - (N+1)x1 Pump & Signal Combiner, 200W/port

      Polarization Maintaining Fiber Components:

      - In Line Polarizer/Depolarizer

      - In Line Faraday Isolator

      - Optical Circulator

      - Fused WDM / Coupler

      - Filter WDM / Coupler

      - Fiber DWDM

      - Fiber Mirror

      - Faraday Rotator
