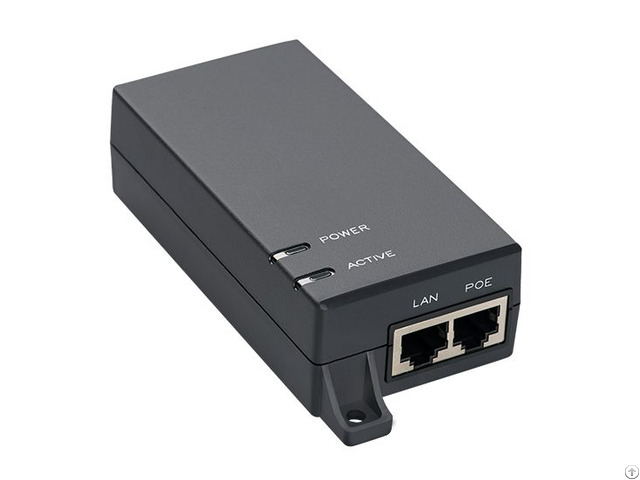

POE Injector For IP Cameras PT-PSE100GF

PT-PSE100GF is a single port midspan Injector with 2 Pair PoE up to 15.4 watts of power at 48Vdc, 0.32A amp.

Designed for the AF powered 15.4W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates.

Fully comply with IEEE802.3af devices.

Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.

Enclosed in an IP40 fire retardant plastic case, designed for indoor use, installation with Wall-mounted.

It operates with a wide input voltage of 100-240Vac, 50 or 60 Hz.

The effective distance limitation of 100 meters over Cat5e/Cat6 cables.

Can be extended with the PoE Injector for wireless APs PT-PEX-01G-OT(Outdoor or Indoor PoE Extender).

We are PoE Injector supplier and more information you can view here

Parameter Description

Key Features Part Number PT-PSE100GF

Ports condition LAN Port*1, AC Input Port*1, PoE Output Port*1

Regulatory Compliance IEEE802.3af

RoHS Compliance

WEEE Compliance

Pass Through Data Rates 10/100/1000 Mbps

PoE Injector Output Pin Assignment and Polarity:

4/5 (+), 7/8 ()

Output Power Voltage: 48Vdc

User Port Power: 15.4W Guaranteen

Input Input Voltage: 100-240Vac

Frequency: 50/60Hz Typ

Working Environment Operating Temperature: 0℃ to 40℃

Operating Humidity: 20% to 80%, non-condensation

Storage Temperature: -20℃ to 70℃

Storage Humidity: 10% to 90%, non-condensation

Operating Altitude: up to 2000meters

AC Surge Protection Line-Earth 1.2/50us (8/20us): 6KV

Line-Line 1.2/50us (8/20us): 4KV

Mechanical Characteristics Case: plastic

Color: Black

Mounting: Wall-mounted

IP Rated: IP40

Connectors: Shielded RJ-45*2

Size: 134 X 56X 33mm

Weight: 170g(0.37lb)


LED Indicator Power Indicator: Green

PoE Load Indicator: Green

Warranty 2 year

Safety Approvals CE, FCC
