Poe Injector 60w - China

PT-PSE106GW-AR-D is a single port midspan Injector with 4 Pair PoE up to 60 watts of power at 55 VDC at 1.1 amp.

Designed for the PoE++ powered 60W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates.

Fully comply with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices.

Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.

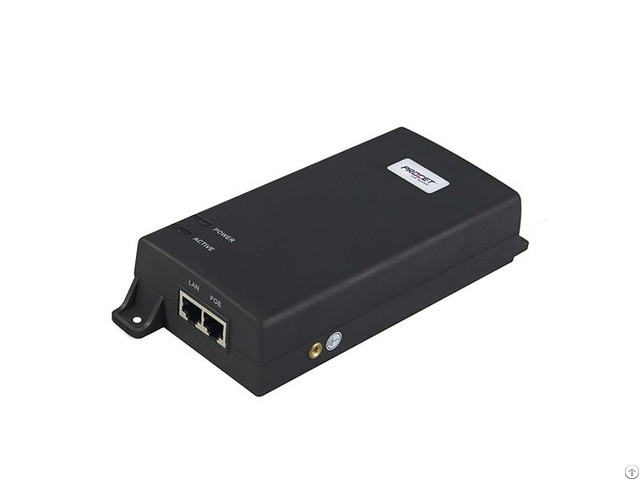

poe injector 60w

Enclosed in an IP40 fire retardant plastic case, designed for indoor installation with Wall-mounted.

It operates with a wide input voltage of 36-72 VDC.

The effective distance limitation of 100 meters over Cat5e/Cat6 cables can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender).

high quality PoE Injector Specifications

Parameter PoE Injector for camera Description

Key Features Wall-mounted

Part Number PT-PSE106GW-AR-D

Ports condition LAN Port*1, DC Input Port*1, PoE Output Port*1

Regulatory Compliance IEEE802.3bt RoHS Compliance WEEE Compliance

Pass Through Data Rates 10/100/1000 Mbps

Output Pin Assignment and Polarity: 4/5 (+), 7/8 () and 3/6 (+), 1/2 () Output Power Voltage: 55Vdc User Port Power: 60W Guaranteen

Input DC Input Voltage: 36 to 72 Vdc DC Input Current: 2.5A

Working Environment Operating Temperature: 0℃to 40℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -20℃to 70℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters

PoE Surge Protection Protected line: 1, 2, 3, 4, 5, 6, 7, 8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV Line-Earth 1.2/50us (8/20us): 6KV Line-Line 1.2/50us (8/20us): 4KV

AC Surge Protection Line-Earth 1.2/50us (8/20us): 2KV Line-Line 1.2/50us (8/20us): 1KV

Mechanical Characteristics Case: Plastic Color: Black Mounting: Wall-mounted IP Rated: IP40 Connectors: Shielded RJ-45*2 Size: 193mmX 85mmX 41mm Weight: 380g13.4oz

LED Indicator Power Indicator : Green PoE Load Indicator : Green @≤30W Blue @30W≤60W

Warranty 2 year

Safety Approvals CE/FCC
