Pm Optical Fiber Faraday Isolator 1310nm 1550nm 2000nm - China
price: 42.00 Dollar US$

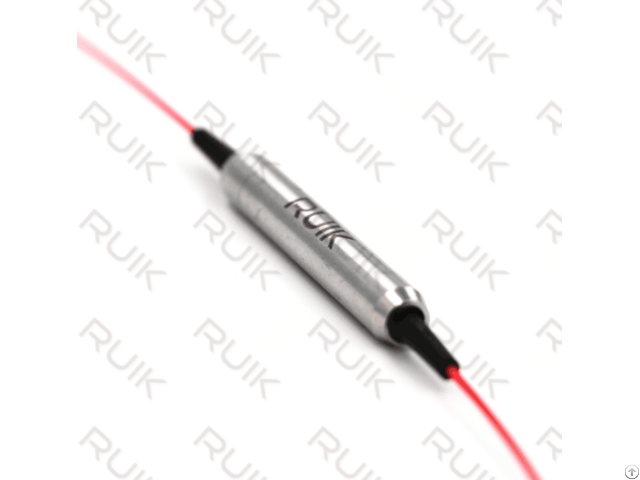

Ruik's polarization maintaining optical isolator is a device, which allows the light to transmit through the passive route from input to output, while blocking the reversed direction.
Other name：
In line isolator, PM Isolator, optical isolator, fiber isolator, PM fiber isolator, 1550nm PM isolator, 1310nm pm isolator, 1550 PM isolator, PM fiber isolator 1550nm, 2um fiber isolator, 2000nm PM isolator, faraday isolator, PM faraday isolator Specifications：
Parameter Unit Value
Stage - Single Dual
Grade - P A P A
Center Wavelength nm 1310 or 1550
Operating Wavelength Range nm ±20
Typ.
Peak Isolation at 23℃ dB 42 40 58 55
Min.
Isolation at 23℃ dB 28 26 48 45
Typ.
Insertion Loss at 23℃ dB 0.4 0.5 0.5 0.6
Max.
Insertion Loss at 23℃ dB 0.55 0.65 0.65 0.8
Min.
Extinction Ratio at 23℃(only for Both Axis Working) dB 20 18 20 18
Min.
Extinction Ratio at 23℃(only for Fast Axis Blocked)
fa) dB 25 23 25 23
Min.
Return Loss (input/output) dB 50/50
Max.
Optical Power(CW) mW 500
Max.
Tensile Load N 5
Operating Temperature ℃ -5~+70
Storage Temperature ℃ -40~+85
Company Contact:
- Posted By: Ruik-tech Communication Co., LTD
- Phone: 18929412926
- Address: Floor 4, Building A, ZhaoHe Industrial Park,, Dongguan , China , China
- Email:
- Website: https://www.ruik-tech.com
Published date: April 12, 2020 - Modified date: April 12, 2020
- Business Description: RUIK- Tech Communication is a manufacturer and supplier of Optical Passive Components with ISO9001: 2015 certified.
We design advanced and cost- effective passive components for various industries which include Fiber Laser, Sensing Applications, CATV, Telecommunication, Medical Systems, Gyroscope, etc.
Our main products include High Power Components up to 100W (20kW), Polarization Maintaining (PM) and Single- mode Fiber Components with ranging from 780nm to 2000nm.
We also provide Customized components to our customers.
High power Optical Fiber Components:
- Optical Fiber Isolator, up 100W
- Free Space Isolator, up to 100W
- Optical Circulator, up to 30W
- Pump Laser Protector
- Band Pass Filter
- Nx1 Pump Combiner
- Cladding Power Stripper
- Mode Field Adapter
- (N+1)x1 Pump & Signal Combiner, 200W/port
Polarization Maintaining Fiber Components:
- In Line Polarizer/Depolarizer
- In Line Faraday Isolator
- Optical Circulator
- Fused WDM / Coupler
- Filter WDM / Coupler
- Fiber DWDM
- Fiber Mirror
- Faraday Rotator
