Pm Fiber Patch Cord 780nm 850nm 1064nm 1550nm - China
price: 25.00 Dollar US$

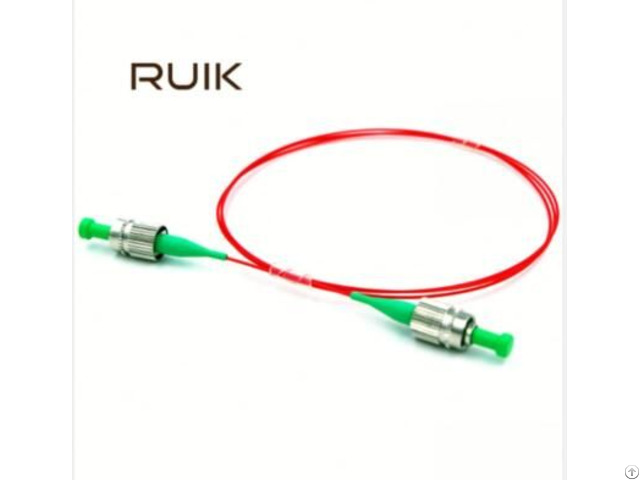

Polarization maintaining (PM) patch cord / jumper leads are built with polarization maintaining panda fiber and connectorise using FC/UPC, FC/APC, SC/UPC, SC/APC and LC connectors.
Specifications： Parameter Unit Value
Connector Type - FC, SC, LC/, MU
FC/APC, SC/APC, LC/APC
Center Wavelength nm 1310/1550 980/1060 850 780
Max.
Insertion Loss nm 0.3 0.5 0.8 0.8
Min.
Extinction Ratio at 23℃ dB 23 23 22 22
Min.
Return loss UPC Type dB 50 APC Type dB 60
Fiber Type - PM Panda fiber
Key Orientation - Slow Axis
Tolerance for Axis Alignment deg ±3
Operating Temperature ℃ -20~+70
Storage Temperature ℃ -40~+85
Company Contact:
- Posted By: Ruik-tech Communication Co., LTD
- Phone: 18929412926
- Address: Floor 4, Building A, ZhaoHe Industrial Park,, Dongguan , China , China
- Email:
- Website: https://www.ruik-tech.com
Published date: April 12, 2020 - Modified date: April 12, 2020
- Business Description: RUIK- Tech Communication is a manufacturer and supplier of Optical Passive Components with ISO9001: 2015 certified.
We design advanced and cost- effective passive components for various industries which include Fiber Laser, Sensing Applications, CATV, Telecommunication, Medical Systems, Gyroscope, etc.
Our main products include High Power Components up to 100W (20kW), Polarization Maintaining (PM) and Single- mode Fiber Components with ranging from 780nm to 2000nm.
We also provide Customized components to our customers.
High power Optical Fiber Components:
- Optical Fiber Isolator, up 100W
- Free Space Isolator, up to 100W
- Optical Circulator, up to 30W
- Pump Laser Protector
- Band Pass Filter
- Nx1 Pump Combiner
- Cladding Power Stripper
- Mode Field Adapter
- (N+1)x1 Pump & Signal Combiner, 200W/port
Polarization Maintaining Fiber Components:
- In Line Polarizer/Depolarizer
- In Line Faraday Isolator
- Optical Circulator
- Fused WDM / Coupler
- Filter WDM / Coupler
- Fiber DWDM
- Fiber Mirror
- Faraday Rotator
