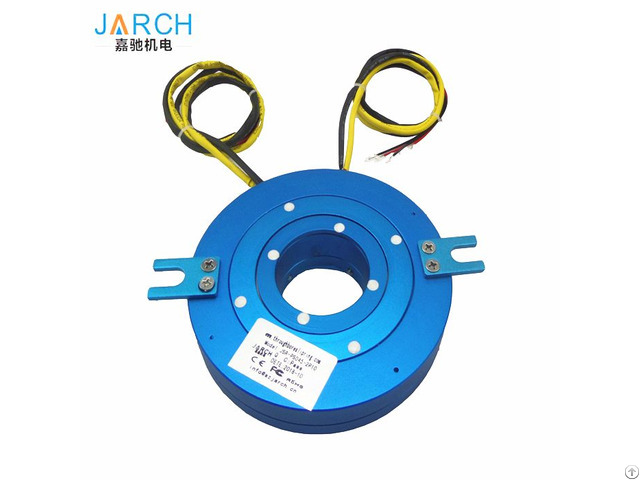

Pancake Schleifring Flat Slip Ring For Power And Signal Transimission - China
price: 100.00 Dollar US$
JARCH pancake schleifring flat slip ring for power and signal transimission Specification: Operating Speed 0-200 rpm
Number of Circuits 2 ~ 10
Voltage 240 VAC/DC
Current Rating 10A per circuit
Temperature Range -20°C to +80°C
Contact Material Gold to Gold
Lead Size 22# silver plated copper
Lead Length Standard 250 mm(9.843inch)
Dielectric Strength ≥500 VAC @50Hz, between each circuit
Insulation Resistance 100 MΩ @ 500 VDC
Electrical Noise 5mΩMin
Benefits: Longer lead lengths availableI
Power and signal combinations
Rotor and stator lead exits
gold alloy brush, Gold plated rings
IP65 are optional
More thickness available Contact Us
If you have any questions, please contact us without any hesitation.
Shenzhen JARCH Electronics Technology Co., Ltd. Main Item list: slip ring, rotary union, fiber optic rotary joint(FORJ), hose reel/cable reel, carbon brush, brush holder.
Customer Service: ATTN: Ms.
Kris Yao E-mail: krisPipe Size 5mm Hydraulic rotary joint Union S316L housing for Rolling crushing equipmentszjarch.
cn Phone&WhatsApp: 86-139 29708571 Skype/Kakao: krisyao313 Wechat: laoyao313 QQ: 3003854385
Company Contact:
- Phone: +8613929708571
- Address: Floor 2, Unit C, Guangfa Industrial Park, Dananhai, Luotian Community, Songgang Street, Baoan Dist., Shenzhen , China
- Email:
Published date: June 26, 2019
- Business Description: JARCH is a professional Slip Ring & Routry Joint manufacturer in Shenzhen, China.
Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
