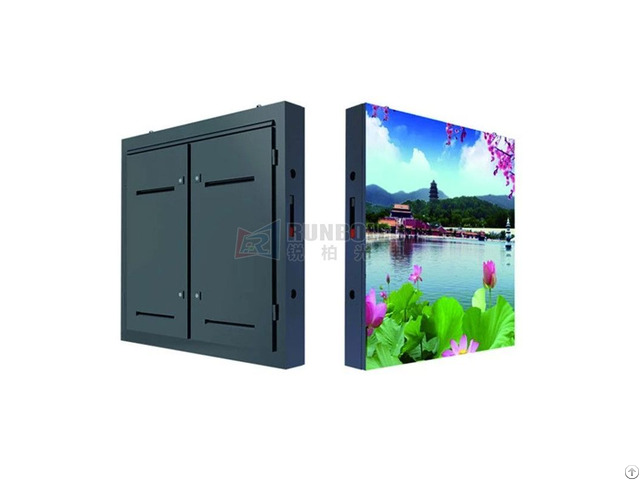

P6 Outdoor TV LED Display with Iron Cabinet for Roof Building Fixed Installation

Permanent Fixed LED Display

With Kinglight or Nationstar led lamp as basic, to ensure the quality to the customer, which can ensure the long lifespan up to 2 to 5 years.

P6 outdoor fixed led display can be make with 1/8 scan and 1/4 scan, to be provided with different brightness to 5000nits or 5500nits for the outdoor application.

Features of P6 Outdoor LED Digital:

1 - High brightness: With Kinglight and Nationstar, to ensure the led lamp quality and it’s brightness, which is up to 5000-5500nits.

2 - Large viewing angle: Horizontal with 140degree, vertical with 120 degree, suit for outdoor large place environment.

3 - Iron cabinet and aluminum cabinet available according to the led screen installed environment, cabinet size can be customized.

4 - High refresh rate, up to 1920-3840Hz, to ensure the image quality.

5 - Hand holder and side lock design for the led cabinet, easily to carry the led cabinet and assemble them one by one.

6 - High heat dissipation: With two or four fans to fix in the back door, keep the led cabinet can be used in the high temperature application.

7 - Front service & rear service are available, can fix in any places.

8 - Long life-span up to 2-5 years.

Specification of SMD Outdoor LED Display:

Parameter Technical of P6 Outdoor LED Video Wall Supplier

Item Model Parameter

LED Module Info.

Pixel Pitch P6 Outdoor Fixed LED Panel LED Lamp SMD2727 IC Driver MBI5124/MBI5051B/MBI5253 LED Module Size 192*192mm LED Module Resolution 32*32dots Color Temperature 3000-9000K Drive Mode 1/8 scan & 1/4 scan

LED Cabinet Info.

Cabinet Size 960*960*120mm Cabinet Resolution 160*160dots Cabinet Material Iron or Aluminum Cabinet LED Module Quantities 5*5=25pcs Cabinet Net Weight 45kg/pc IP Grade Waterproof IP65

LED Display Info.

Best Viewing Distance 6m-100m Viewing Angle H: 140°/ V: 120° Pixel Density 27777dots/㎡ Brightness 5000-5500nits Max.

Power Consumption 664W/㎡ Ave.

Power Consumption 299W/㎡ Refresh Rate 1920Hz-3840H, can be adjusted

Control System Info.

Operating System WIN98/2000/NT/XP Control Method Synchronous display with control PC by DVI or Asynchronous with Wifi/4G/USB Control System Linsn, Nova-star, Colorlight or as you required Display Content Video, DVD, VCD, TV, picture, cartoon, graphics, texts.

etc.

Frame Frequency 50Hz or 60Hz Transmission Distance Multi mode fiber <500m, single mode fiber <30km, internet cable<100m

Operation Info.

Working Temperature -20℃--+60℃ Storage Temperature -30℃--+80℃ Input Voltage AC110V/AC220V Humidity Environment 10%-95% Lifespan 100, 000hours MTBF 10, 000hours Certificate CE, CCC, FCC, ROHS, ISO9001 We are an Waterproof Outdoor LED Wall Wholesaler.
