P10 Outdoor Sport Stadium Football Perimeter Led Display With Magnesium Alloy Cabinet - China

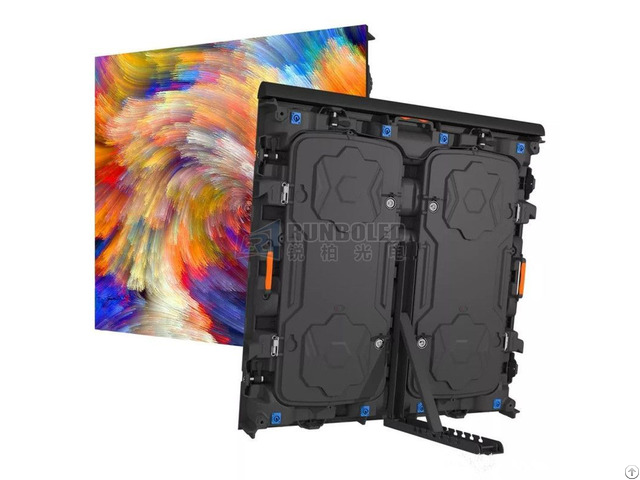

P10 Outdoor Sport Stadium Football Perimeter LED Display with Magnesium Alloy Cabinet

Outdoor P10 SMD LED Display

For sport stadium project, it will request outdoor or indoor led screen to show led billboard under it’s sport match.

For our P10 outdoor fence perimeter led display, it’s popular for football match and basketball match to show many company’s logo or name.

We here now have P10 outdoor with magnesium alloy cabinet, aluminum cabinet and iron cabinet for your choice.

Features of our Football Stadium LED Wall:

1 - From the top of the perimeter cabinet, it covers with rubber foam, which can protect the athlete from hurting.

2 - For the cabinet, it can be supply with different raw material, including Iron & aluminum cabinet with 1280x1280mm or 1280x960mm or 960x960mm cabinet size, magnesium alloy aluminum cabinet with 960x960mm to meet the customers’ budget and led display working environment.

3 - For the front side of the led modules, it covers with soft mask, which can protect the led lamp not to broke and the athlete not to get hurt.

4 - For the bottom of the back side, it has stand brackets to support the cabinets with different angle adjustable to show the led billboard to the audiences and fans.

5 - High contrast, high refresh rate without scanning lines, good for the HD Camera to do the live broadcasting.

6 - High waterproof with IP65 and high brightness up to 6500nits-7000nits to ensure the clear pictures even under the sunshine day.

7 - Supper light weight with about 35kg/sqm for a cabinet, both function for a cabinet for sport perimeter led events and for a rental stage events sometimes.

8 - Meet the EUFA/FIFA standard, we are Outdoor Fence LED Display Supplier.

Specification of Stadium Fence LED Wall:

Parameter Technical of IP65 Waterproof P10 Outdoor Perimeter LED Advertising

Item Model Parameter

LED Module Info.

Pixel Pitch P10 Outdoor Rental or Fixed Install LED Lamp SMD3535 IC Driver MBI5124/MBI5051B LED Module Size 320*160mm LED Module Resolution 32*16dots Color Temperature 3000-9000K Drive Mode 1/2 scan Mask Soft Mask

LED Cabinet Info.

Cabinet Size 960*960*120mm Cabinet Resolution 96*96dots Cabinet Material Magnesium Alloy Aluminum Cabinet LED Module Quantities 3*6=18pcs Cabinet Net Weight 35kg/pc IP Grade Waterproof IP65 Rubber Foam Yes

LED Display Info.

Best Viewing Distance 10m-100m Viewing Angle H: 140°/ V: 120° Pixel Density 10000dots/㎡ Brightness 6500nits Max.

Power Consumption 956W/㎡ Ave.

Power Consumption 430W/㎡ Refresh Rate 1920Hz-3840H, can be adjusted

Control System Info.

Operating System WIN98/2000/NT/XP Control Method Synchronous display with control PC by DVI or Asynchronous with Wifi/4G/USB Control System Linsn, Nova-star, Colorlight or as you required Display Content Video, DVD, VCD, TV, picture, cartoon, graphics, texts.

etc.

Frame Frequency 50Hz or 60Hz Transmission Distance Multi mode fiber <500m, single mode fiber <30km, internet cable<100m

Operation Info.

Working Temperature -20℃--+60℃ Storage Temperature -30℃--+80℃ Input Voltage AC110V/AC220V Humidity Environment 10%-95% Lifespan 100, 000hours MTBF 10, 000hours Certificate CE, CCC, FCC, ROHS, ISO9001
