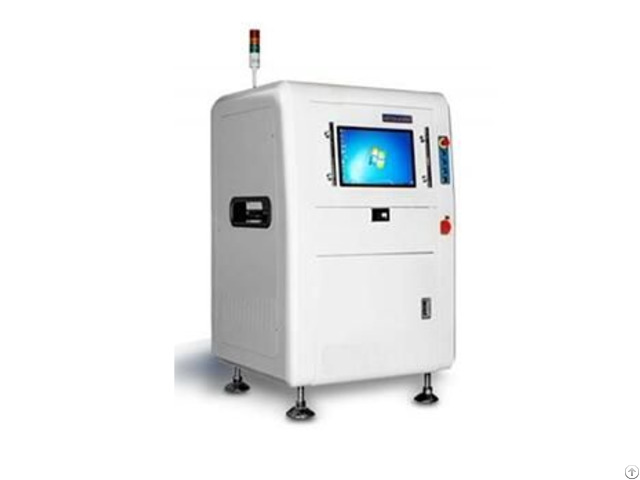

Online Spi Solder Paste Tester Smt - China

Programmable structure grating (PSLM) realizes software control of the grating.

Patented synchronous diffuse technology eliminates the effects of shadows.

Sigma high-end 4 megapixel industrial camera (optional 8 megapixel camera), precision-grade screw guides guarantees mechanical accuracy.

Accurate measurement of volume, area, height, XY offset, bridging, etc.

Full-board automatic detection, automatic path optimization.

For defective solder paste, inspections are performed quickly, and classification is performed automatically.

Sampling for 6~8 times, reliable, high-precision test results.

Device repeatability accuracy <<10% (6 Sigma)

Automatically eliminates effects of board bend.

Powerful process control software (SPC).

Manual teach function is designed for the detection in case of no Gerber files.

Gerber file import programming.

Five-minute programming and one-button operation.

Specifications Machine Size

I350

Measurement Principle

Programmable Spatial Light Modulation (PSLM PMP)

Measurements Volume, area, height, X/Y position, bridging, shape, etc.

Detection of Non-performing Types Insufficient/Excessive/Mi ssing paste, bridge 2D&3D, paste displacement, shape deformity.

etc.

Camera Specification 4M/8M High-frame industrial camera (optional 8, 000, 000 pixels camera)

Pixel

18um(Optional 10um, 15um, 18um, 20um)

Accuracy

XY Position：10um; Height：小于1um

Height Repeatability

Height: <1μm(4 Sigma);

Volume Repeatability

Volume：<1%(4 Sigma)

SolderPaste Gage R&R

<10%

Detection Speed

0.4sec/FOV

Lighting Source

Red/Green/Blue(R/G/B)

Mark-point Detection Time

0.3sec/pcs

Maximum Measuring Height

±350μm (Optional ±1200μm)

Maximum Measuring Height of PCB Warp

±5mm

Minimum Pad Spacing

100um

Smallest Size Measurement

Rectangle: 150um; Circle: 200um

PCB Size

50×50-400×350mm

PCB Thickness

0.4-5mm

PCB Weight

0-3kg(Optional 5kg)

Transport Height

900±40mm

PCB Transfer Direction

L to R; R to L

SPC Statistics

Histogram; Xbar-R Chart, Xbar-S Chart, Cp & Cpk; % GageRepeatability Data;SPI Daily/Weekly/Monthly Reports

Import Pad Position

Support Gerber Data 274D/274X format, manual Teach mode, CADX, Y, Part No., Package Type Import

Operating System Support

Windows 7 (64 bits) Professional

Power Supply

220V AC/15A

Air Supply

0.5MPa

Equipment Dimension

W994×D1046×H1500mm

Equipment Weight

780kg

Option

Offline programming system, Gerber Conversion, bar code reader, PCB Support Pin, Repair Station Software, UPS, 3D height correction fixture
