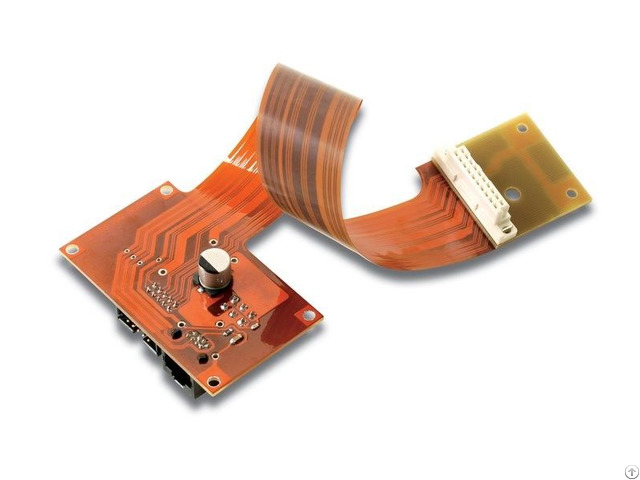

Oem Electronic Printed Circuit Board For Communication Devices Flexible Pcb - China
price: 100.00 Dollar US$
Material: FR4, Polyimide/Polyester
Counts Flex: 1~12L; Board Thickness Min.
0.05mm ; Max.
0.4mm
Copper Thickness: 1/3oz, 1/2oz, 1oz, 2 oz
CNC Drill Size (Max): 6.5mm
CNC Drill Size (Min): 0.15mm
Holes Location Tolerance: ±0.05mm
Cover lay Drill Size (Min): 0.6mm
Hole to Cover lay Opening Windows (Min): 0.15mm
Min Line Width / Spacing: 0.1/0.1mm
Copper Thickness on Hole Wall Flex: 12-22μm
Min Pad Size: φ0.2mm
Etch Tolerance: Finished line width tolerance ±20%
Pattern Registration Tolerance: ±0.1mm (Working Panel Size: 250*300mm)
Coverlay Registration Tolerance: ±0.15mm
Solder Mask Registration Tolerance: ±0.2mm
Solder Mask to PAD: Non photosensitive 0.2mm, Photosensitive 0.1mm
Min.
Solder Mask Dam: 0.1mm
Misstatement Tolerance for Stiffener, Adhesive, Glue paper: ±0.30mm Surface Finish: Plating Ni / Au, Chemical Ni / Au, OSP
Company Contact:
- Posted By: Shenzhen Derek Tech Co, Ltd
- Phone: 86-15959214177
- Address: Xinqiao, Shajing, Shenzhen , Guangdong , China
- Email:
Published date: April 16, 2019
- Business Description: Derek Tech Co.
Ltd. is a senior PCB manufacture in Shenzhen, China.
We providing some of the most innovative printed circuit board technologies and highest quality standards in the industry.
Our core competencies are Multi-layer PCB&PCBA products.
Over 120 employees, average tenure 11 years, their rich experience enable us to supply our clients with up to date products of stable good quality.
Servicing the defense, aerospace, medical, industrial, clean technology, mobile & telecom markets.
You can count on us to meet your needs from the simplest boards to the most complex designs for small quantity and large scale production.
