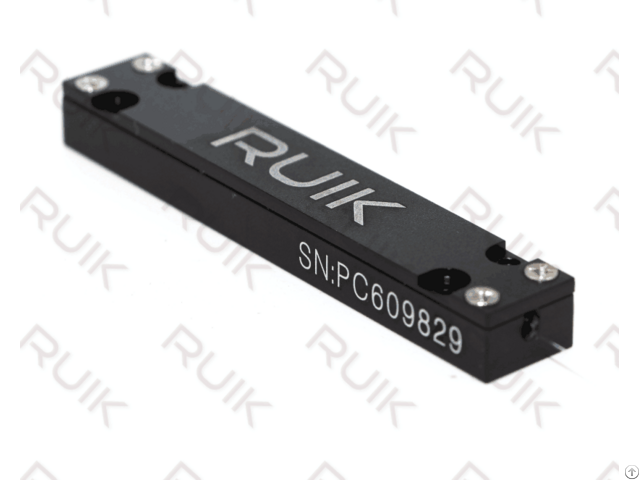

Nx1 Multimode Pump Combiner - China

(N+1)×1 Multimode Pump and Signal Combiners can be used for high power fiber lasers and fiber amplifiers.

These devices can be used to combine several pump lasers and couple that power with a seed signal.

Manufactured using our proprietary methods, the product series includes (6+1)×1, (18+1)×1, (36+1)×1 and other reasonable configurations are available.

Specifications

Parameters Value

Value

Port Configuration 3x1 7x1

Pump Wavelength 800~1000nm

Pump Input Fiber 105/125 0.22NA 105/125 0.22NA or 200/220 0.22NA output Fiber Y/125 or 200/220 200/220 or Y/250 or 20/400

Pump Efficiency >95% Total Handling Power 300W Package Dimension D1, D2, D3, D4, D5, D6, D7

Operating Temperature -5~+70

Storage Temperature -40~+85 Our main products include High Power Components up to 100W (20kW), Polarization Maintaining (PM) and Single-mode Fiber Components with ranging from 780nm to 2000nm.

We also provide Customized components to our customers.

High power Optical Fiber Components:

-Optical Fiber Isolator, up 100W;

-Free Space Isolator, up to 100W;

-Optical Circulator, up to 30W;

-Pump Laser Protector;

-Band Pass Filter;

-Nx1 Pump Combiner;

-Cladding Power Stripper;

-Mode Field Adapter;

-(N+1)x1 Pump & Signal Combiner, 200W/port; Polarization Maintaining Fiber Components:

-In Line Polarizer/Depolarizer;


-In Line Faraday Isolator;

-Optical Circulator;

-Fused WDM / Coupler;

-Filter WDM / Coupler;

-Fiber DWDM

-Fiber Mirror;

-Faraday Rotator;

-Fiber Patch cord / Jumper;

-PLC Splitter Module;

-Tap / WDM / Isolator Hybrid;

Manual Variable Optical Attenuator;

-1x2 Polarization Beam Splitter / Combiner (PBS/C)

-1x2 Isolator & Polarization Beam Splitter / Combiner (IPBS/C)
