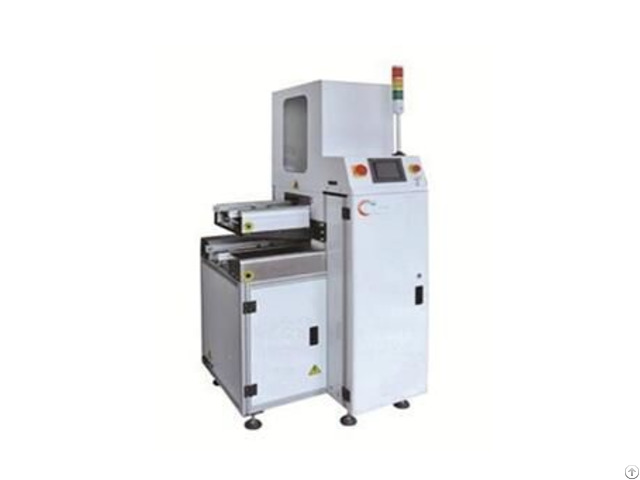

Ng Ok Unloader Smt - China
price: contact company for price
It is used for putting NG board and OK board into their respectively box according to the result of AOI, SPI.
It doesn’t require manual operation.
Model
RX-BUFFER10
Dimensions
L 1520 X W900XH500(excluding the height of three-color light)
Weight
300 KG
Power supply
AC 220V 3 line 2A
Gas supply
3-5kg/cm2
Feeder size
320x355x563mm
Feeding height
900+—20mm
Board size (L*W) 50*50-460*330 Loading time
About 6s
Feed box change time
About 30s
Transmission direction
Left → Right or Right → Left
Board thickness (mm)
0.6mm Product name NG/OK double action unloader, NG BUFFER, separate-box unloader, etc.
Features
1 - Effective design can ensure PCB is not crashed
2 - Connect to back end of AOI, separate good boards from bad ones on the production line
3 - Overall framework structure.
The main frame of OK/NG lift is welded as a whole, with high strength, good stability
4 - Compact structure, small footprint, saves factory space
5 - Full touch screen man-machine dialogue control.
Easy to operate.
6 - Built-in statistical function.
Record production status at real time
7 - Built-in detailed fault retrieval function and safety detection system, abnormal sound and light alarm, and indicate solution in texts.
Easy to handle.
8 - Uses PLC central control, with stable performance
9 - Lifting system adopts imported ball screw and high carbon steel column, low noise, low vibration, accurate positioning
10 - Built-in braking system, accurate positioning.
11 - Uses portable electric box, easy to repair.
12 - Hand-operated push rod cylinder width adjustment system, convenient and quick
13 - Uses universal standard shelf, good versatility
14 - Provide communication interface, allowing for connecting with other automatic device.
15 - NG/OK uses Panasonic motor to push boards, constant torque, flexibly push boards.
It does not damage boards.
16 - Hierarchical authority settings.
Make sure that the machine parameters are not changed at will.
