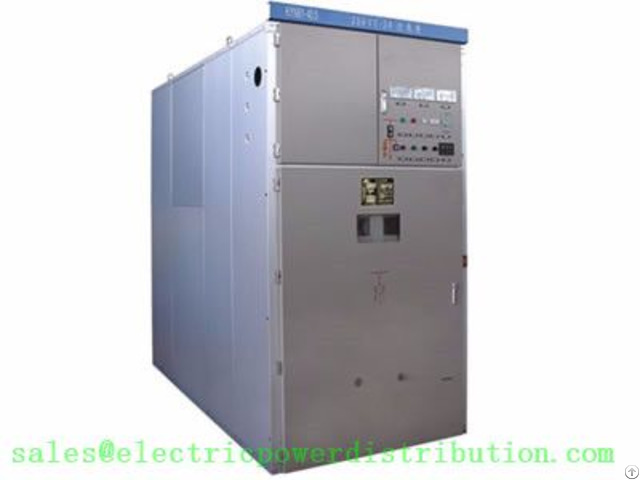

Mv Kyn61 40 5 Metal Clad Moveable Switchgear - China

MV KYN61-40.5 metal-clad movable switchgear is indoor power distribution equipment and it is suitable for 3-phase, AC, 50 Hz and rated voltage of 40.5 kV.

This kind of switchgears are used to receive and distribute power energy in power plants, transformer substations and industrial & mining establishments.

They are also used to control, protect and monitor circuits.

Besides, they are used in the frequent operation occasions.

Features:

Switchgear is designed of assembly structure and circuit breaker is handcart floor model.

It is equipped with advanced composite insulation vacuum circuit breakers featuring good exchangeability and simple change.

There is lead screw nut propulsion mechanism in handcart frame, making the handcart movement easy.

And this design can prevent from fault operation which may damage the propulsion mechanism.

All the operations can be carried out at switchgear-closed condition.

The interlockings of main switch, handcart and switchgear door adopt compulsory mechanical locking, and this design meets five protection function.

The space of cable chamber is wide and many cables can be connected in the cable chamber.

Quick earthing switch is used for earthing and loop short circuit.

The protection degree of enclosure is IP3X and IP2X at the handcart door opening condition.

The product conforms to GB/T11022-1999, GB3906-1991 and DL404-1997 - It is manufactured according to international standard of IEC-298.

Overall dimensions (width × depth × height): 1400 mm × 2800 mm × 2600 mm

You can contact us via sales at electricpowerdistribution dot com, if you have any questions about our products.

Company Contact:

• Posted By: Hebei Keneng Electric Co., Ltd.

• Phone: 8631857810511

• Address: West Industry Park, Hengshui, Hebei, China., Henghui , Hebei , China

• Email:

• Website: https://www.electricpowerdistribution.com

• Business Description: Hebei Keneng Electric Co., Ltd. is the professional manufacturer of power distribution systems in China.

  We not only manufacture electric equipment, such as switchgears, power transformers, prefabricated substations, circuit breakers and other electrical components, but we can also design electric systems for customers according to their requirements.

  We have been focusing on research and development in recent years, and we have made great achievement in this industry.

  We have established long term cooperation relationship with many companies.

  Our products have been exported to many countries, such as Spain, Mexico, the Philippines, India and Germany, and our products have been used in many projects successfully.

  Electric equipment is widely used in various areas, such as residential areas, power plants, transformer substations, airports, railway stations, subways, ports, supermarkets, shopping centers, hospitals.

  And they are also used for many industries, such as paper-making, cement, textile, chemical engineering, food, automobile, metallurgy and mine.

  Several switchgears are in the workshop.

  Switchgears are mainly used for power generation, transmission, distribution and conversion in electric power systems.

  A power transformer is in the workshop.

  Power transformers can change alternating voltage by taking advantage of electromagnetic induction.

  A prefabricated substation is in the workshop.

  Prefabricated substations are widely used for residential areas, commercial hotels, large construction sites and high-rise buildings.

  We provide our customers with high quality & safe electric equipment and considerate service.

  We have large workshop, advanced equipment and skilled workers to guarantee the products quality.

  And we attach importance to raw material selection.

  Besides, we have testing rooms and complete testing equipment to test our products before they are delivered to our customers.

  And we have experienced engineers to design power systems according to your requirements.

  Contact us immediately if you are interested in our products or our service.

  You can email us at sales@electricpowerdistri bution.

  com if you have any questions.
