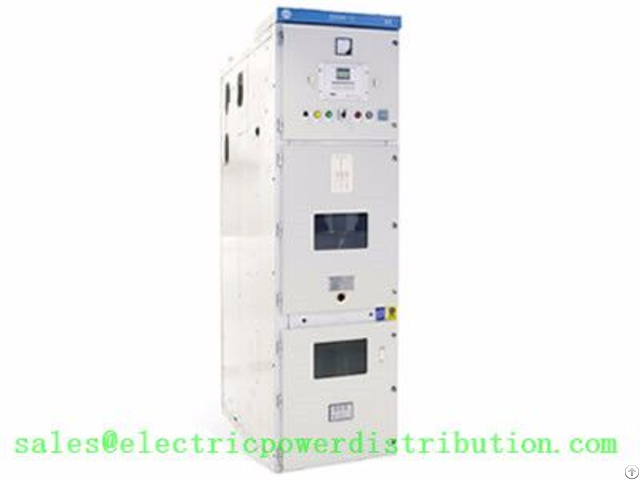

Mv Kyn28c 12 Metal Clad Movable Switchgear - China

MV KYN28C-12 metal-clad movable switchgear is the modification of MV KYN28A-12 metal-clad movable switchgear, so it not only has the advantages of MV KYN28A-12 metal-clad movable switchgear, but it also has other features shown below.

The cabinet size: width: 650 mm, depth: 1200 mm, height: 2200 mm.

And this kind of switchgear is smaller than other standard switchgears.

It is equipped with ZN63K solid sealed polar pole type vacuum circuit breaker, and insulation performance is perfect.

And this design solves the vacuum circuit breaker environment tolerance problem and it makes circuit breaker miniaturization and high-reliability come true.

The rated current is 1250 A when the width of switchgear is 650 mm.

If the rated current is larger than 1250 A, the width of switchgear should be larger than 650 mm.

Both of current transformer and voltage transformer are manufactured of miniaturization and technical indicators meet standard requirements.

And they can be installed in cabinet body properly.

Pressure relief cover is designed of heat dissipation function, which is beneficial to in-time ventilation & heat dissipation.

This design can also prevent dust effectively.

Small bus-bar terminal and small bus-bar are our patented products, and their installation and overhaul are simple and convenient.

Normal working conditions:

Temperature range: -25 °C to +40 °C.

The maximum daily average relative humidity: 95%.

The maximum monthly average relative humidity: 90%.

Altitude: ≤ 1000 m.

Seismic intensity: ≤ 8 degree.

Note: if the working condition is beyond the normal working conditions, please contact us before goods ordering.
