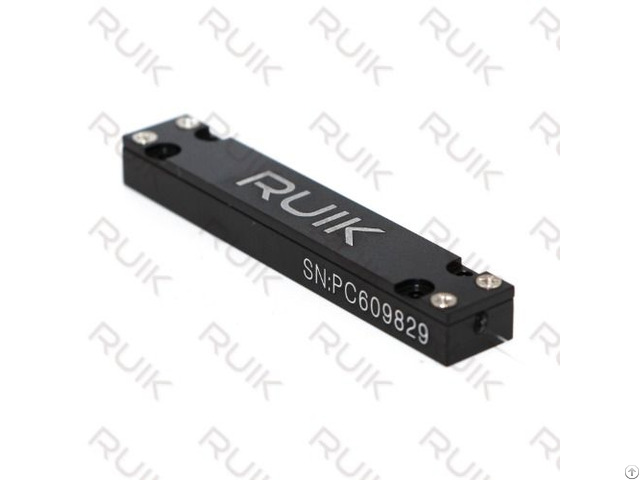

Multimode Cladding Power Stripper - China

Cladding Power Strippers (CPS) can be used for high power fiber lasers and fiber amplifiers to strip unwanted cladding light from dual clad fiber (DCF).

Specifications

Parameters Value

Value

Port Configuration 1x1

Signal Wavelength 800~2000nm

Pump Wavelength 800~2000nm

Signal Fiber X/125 X/250 X/400

Cladding Power Attenuation >20dB >18dB >18dB

Signal Insertion Loss <0.13dB

Total Handling Power 20W 100W 1000W

Polarization Extinction Ratio >18dB(Input port ER >25dB)

Return Loss >45dB

Package Dimension D1, D2, D3, D4, D5, D6, D7

Operating Temperature -5~+70

Storage Temperature -40~+85 Our main products include High Power Components up to 100W (20kW), Polarization Maintaining (PM) and Single-mode Fiber Components with ranging from 780nm to 2000nm.

We also provide Customized components to our customers.

High power Optical Fiber Components:

-Optical Fiber Isolator, up 100W;

-Free Space Isolator, up to 100W;

-Optical Circulator, up to 30W;

-Pump Laser Protector;

-Band Pass Filter;

-Nx1 Pump Combiner;

-Cladding Power Stripper;

-Mode Field Adapter;

-(N+1)x1 Pump & Signal Combiner, 200W/port; Polarization Maintaining Fiber Components:

-In Line Polarizer/Depolarizer;


-In Line Faraday Isolator;

-Optical Circulator;

-Fused WDM / Coupler;

-Filter WDM / Coupler;

-Fiber DWDM

-Fiber Mirror;

-Faraday Rotator;

-Fiber Patch cord / Jumper;

-PLC Splitter Module;

-Tap / WDM / Isolator Hybrid;

Manual Variable Optical Attenuator;

-1x2 Polarization Beam Splitter / Combiner (PBS/C)

-1x2 Isolator & Polarization Beam Splitter / Combiner (IPBS/C)
