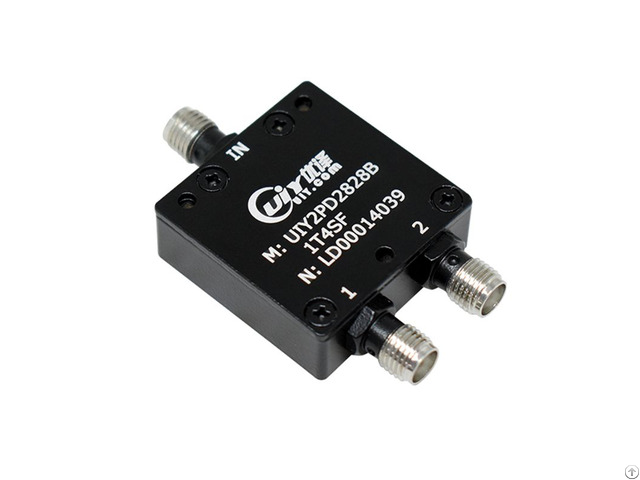

Ls Band 1 0 4 0ghz 2 Way Power Divider Sma Female - China
price: 150.00 Dollar US$
Model Number: UIY2PD2828B1T4SF
Frequency Range: 1.0~4.0GHz
Insertion Loss: 0.5dB (Split 3dB)
Isolation: 20dB
VSWR Input: 1.3
VSWR Output: 1.3
Phase Unbalance: ±3°
Amplitude Unbalance：±0.3dB
Forward Power：30W
Reverse Power：3W
Connector Type: SMA-F
Temperature：-55~+85â „ƒ
Dimension：28*28*10mm
Frequency range 70MHz to 40GHz.
Military, space and commercial applications.
Low insertion loss, high isolation, high power handling.
Custom design available upon request.
Company Contact:
- Posted By: UIY Inc.
- Phone: +8675583748888
- Address: No. 8, lane 1, Xintun East Zone, Longgang District, 518172, Shenzhen , Guangdong Province, China
- Email:
- Website: https://www.uiy.com/
Published date: May 26, 2022
- Business Description: Professional Radio Frequency (RF) / Microwave Device Supplier
Professionally customized Radio Frequency (RF) / Microwave Components Manufacture.
UIY Inc.
was established in 2003 in Shenzhen, China, with the registered capital of 200 million yuan (about 32 million dollars).
It is an integrated enterprise, which includes research, production, marketing and service for the civilian and military microwave communications device.
The products are sold all over the world.
Product catalog:
Isolator / Circulator
Filter / Duplexer / Triplexer
Power Divider / Splitter
Hybrid Combiner / Directional Coupler
Coaxial Termination / Attenuator
Waveguide to Coaxial Adapter
Tx & Rx Multicoupler
Our products are in full compliance with RoHS, ISO9001 and ISO14001 international standard, with high-precision testing equipment and QC team, and we have established a strict quality control system.
We are committed to providing our customers with high-quality products for a long time.
