Low Cost Digital Output Single Axis Tilt Sensor - China

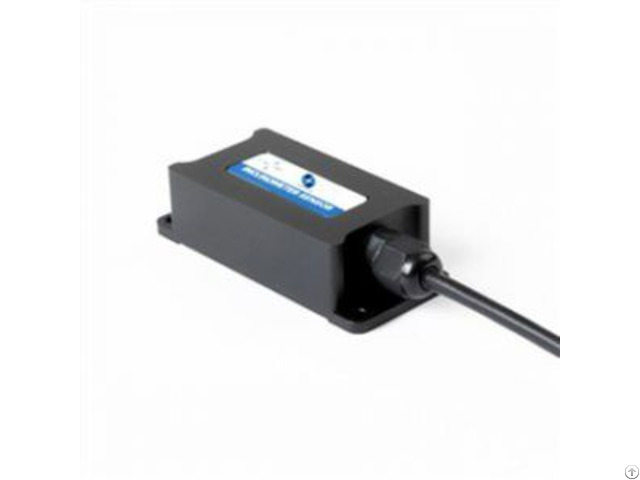

Introduction ER-TS-4158DI Digital Single Axis Tilt Meter is a small volume MEMS uniaxial current output inclinometer sensor, the output current is 4~20mA, 0~20mA, 0~24mA optional.

Due to the built-in micro-electromechanical production process inclination device, the product is small in size, low in power consumption, industrial-grade working temperature is -40~+85℃, and long-distance transmission can reach more than 2500 meters.

The strong ability to resist external electromagnetic interference makes it suitable for long-term work in harsh industrial environments.

The product adopts non-contact measuring principle that can output the current attitude and inclination in real time, the accuracy can reach 0.1°.

It is easy to use and no need to find the relative change of the two surface installation, which is the ideal choice of industrial equipment, platform attitude measurement.

Features Full range accuracy 0.1°, resolution 0.01° Output 4~20mA, 0~20mA, 0~24mA optional Wide voltage input DC 9~36V Wide temperature working -40~+85℃ Measuring range: 0~±180°(optional) High vibration resistance >3500g IP67 protection Can output RS232 at the same time Small volume (90*40*27mm) (customizable)

Applications Railway gauge Satellite solar antenna positioning Tractor, deep ploughing farm machine Mining machinery, oil logging equipment Medical equipment Gimp leveling Hydraulic lifting platform Tilt based monitoring Various construction machinery angle control Inspection of bridges and dams
