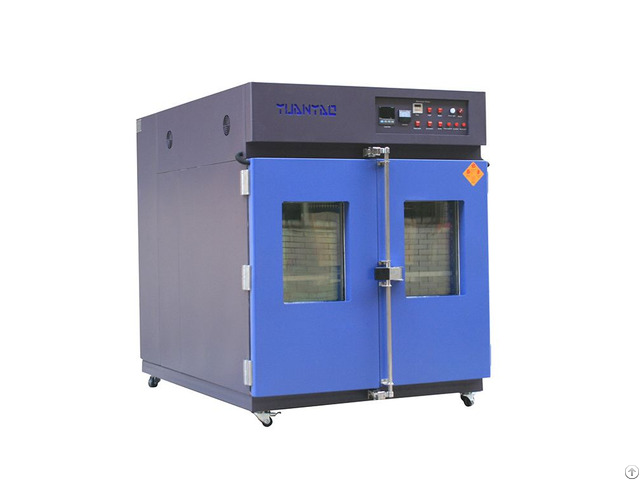

Lab High Temperature Industrial Drying Oven Factory Price - China

High Temperature Industrial Drying Oven is widely used to test materials resistance performance in high temperature test condition.

It is widely applied to Circuit boards, electronic component, photoelectric device, electroplating metal, plastic chemical industry, printing industry, processing coating, ceramic glass and transformer, inductance coil, motor coil baking, drying, aging, etc.

Main Features: 1 - Microcomputer electronic digital control, precision & reliability.

2 - High temperature endurance & non-aging.

3 - Observation view window, easy operation.

4 - Forced circulation air, the temperature rise fast, even distribution.

5 - PID control, double overheating protection, safety and reliability.

6 - Two groups of moving plates can be adjusted height.

9 Best after sales service: One year free parts warranty service.

7 - Meet international test standards.

8 - Customization is available & welcomed.

Technical parameters: Specification

MODEL YPO-072 YPO-270 YPO-480 YOP-600 YPO-720

Internal Sim.

WHD(mm) 450×400×400 600×900×500 800×1000×600 1000×1000×600 1200×1000×600

External Dim.

W×H×D(mm) 750×1200×550 1050×1650×740 1200×1700×840 1400×1750×840 1750×1750×840

Temp.

Range Room Temp.

+10ºC---+200ºC(300 ºC)

Ferformance Temp.

&Humi, Constancy ±0.3ºC

Temp.

&Humi, Constancy ±0.1ºC AT 200ºC;±1.5% AT 300ºC

Indication Resolution 0.1ºC/1ºC

Heat-up Time( min.

) Approx.

60min.

Material Exterior Iron Sheet+Baked Enamel

Interior SUS#304 stainless steel piate

Insulation Fiberglass Wool

SYSTEMS Cirulation Circle Fen

Heating Chrome Steel Strip Wire Heater

Controller Electric Digital Control+S.S.R.

door Single-Wing Double-Wing

Other Components Environmental Control Indicator Lights, Experiment Separation Shelves(2 pcs).

Sevey Devices Overheating Prevention Circuit breaker, Control System, Breakdown Indicator Light.

Power Source[K.W.] AC 1Ψ 220V ; 3Ψ 380V 60/50Hz Any requested size and TEMP.

range(max.

1200ºC)will be considered.

Except High Temperature Industrial Drying Oven, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply: Precision Oven Tester, Triple Type Temp.

& Humi.

Chamber, Temp.

&Humi.

Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp.

Humi.

&Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.

Other styles with different configuratitions are also available upon request, welcome to enquire and contact us anytime!
