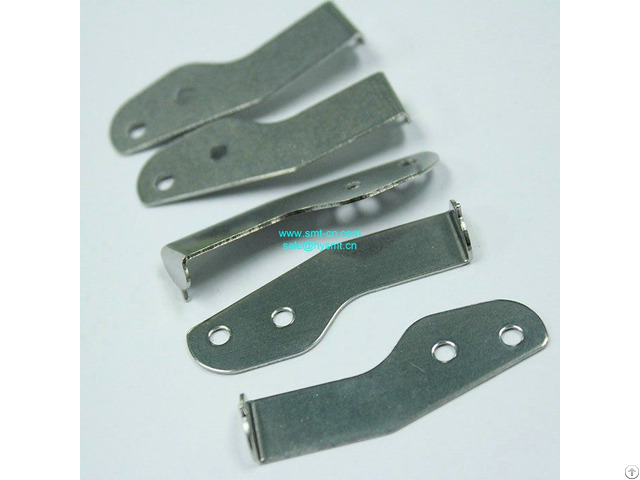

Kw1 M22a1 001 Yamaha Cl 12mm Feeder Lower Guide Plate R - China

Kw1-m22a1-001 yamaha cl 12mm feeder lower guide plate r

other yamaha parts:

no.

part no.

part name q'ty remarks

1 khj-mc501-00 body, feeder 1

2 khj-mc502-00 cover, feeder 1

3 khj-mc106-00 plate, under 1

4 khj-mc206-00 plate, under 1

5 khj-mc60c-00 seal, main label 1

6 khj-mc60k-003 spacer, 44a 1

7 khj-mc60l-003 spacer, 44b 1

8 khj-mc510-000 motor, feed 1

9 khj-mc532-00 sprocket 1

10 khj-mc534-00 gear, idle f1 1

11 khj-mc535-00 gear, idle f2 1

12 khj-mc53r-00 gear, idle f3-1 1

13 khj-mc53s-00 gear, idle f3-2 1

14 khj-mc537-00 gear, idle f4 1

15 khj-mc638-00 gear, driven 1

16 khj-mc13d-00 spring, pusher plate 3

17 khj-mc53e-00 bolt hex.

s/h low 1

18 90990-08j021 screw, stad 2

19 khj-mc53h-00 shaft, idle gear f2 1

20 khj-mc53j-00 shaft, idle gear f3 1

21 khj-mc53k-00 shaft, idle gear f4 1

22 khj-mc53l-00 cover, feed gear 1

23 khj-mc53m-00 sub-bush, sprocket 1

24 khj-mc53n-00 pin, dowel 2

25 khj-mc561-00 box, top tape 1

26 khj-mc562-00 cover, top tape box 1

27 khj-mc165-00 magnet, tail 1

28 khj-mc666-00 block, p/o tooth 1 1

29 khj-mc46t-00 bolt hex.

s/h low 2

30 khj-mc66r-003 spacer, 44c 1

31 khj-mc66s-003 spacer, 44d 1

32 khj-mc66u-00 tail cover assy.

1

the procedures of electronic components inspection includes:

▪ lable verification to check if the part is original and consistent with the order

▪ appearance inspection to make sure the package is correct and there is no damage to the surface

▪ package inspection

▪ third-party test conduction via our in-house, certified test labs for quality guarantee

▪ picture archive for the shipping package each step of the inspection is very rigorous and aims to ensure that all products are delivered with the expected standard of excellence and quality.
