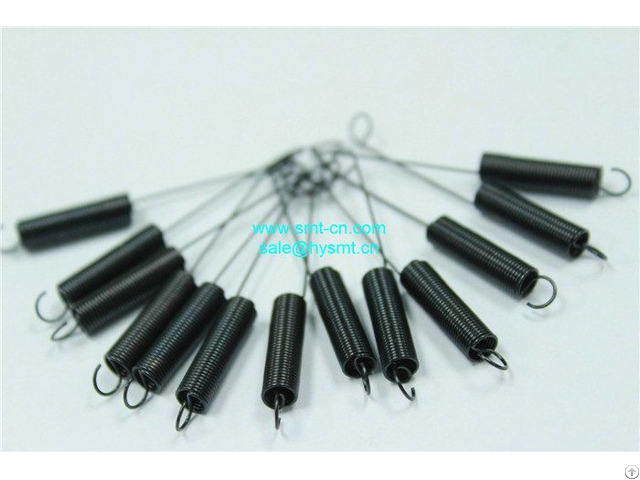

Kw1 M111a 00x Yamaha Cl Feeder Stopper Beak Spring - China

KW1-M111A-00X YAMAHA CL Feeder Stopper Beak Spring Other yamaha parts:

No.

Part No.

Part Name Q'ty Remarks Date Revised No.

1 K87-M111H-20X BACK STOPPER 1

2 K87-M111B-00X BACK STOPPER AXIS 1

3 KW1-M111A-00X SPRING 1

4 K87-M111G-10X PUSH PIN 1

5 K87-M111C-00X PLANE WASHER 1

6 K87-M111P-00X SCREW, FLAT HEAD + 1

7 K87-M111D-00X PUSH PIN 1

8 K87-M112L-10X SPROCKET AXIS ASSY 1

9 KW1-M112A-00X RACKING LEVER ASSY 1

10 K87-M112D-10X COIL SPRING 1

11 KW1-M111E-00X SPRING 1

12 K87-M111F-10X STOPPER PIN 1

13 K87-M1181-00X ROD CONNECT 1

14 K87-M1184-00X CONNECT PIN 1

15 KW1-M1185-00X MULTI CYLINDER 1

16 KW1-M111L-00X BARB CONNECTOR 2

17 K87-M111M-00X GASKET 2

18 KW1-M11B1-00X AIR HOSE 1 L70

19 K87-M11B9-00X CIRCLIP E 1

20 KW1-M11BL-00X BOLT, HEX SOCKET HEAD 2

21 KW1-M11BM-00X SPRING LOCK WAHSER 2

22 KW1-M114A-00X HAND LEVER ASSY 1

23 KW1-M116K-00X LEVER AXIS 1

24 KW1-M1177-00X MAIN ARM 1

25 K87-M111C-00X PLANE WASHER 2

26 K87-M11BF-00X SCREW, FLAT HEAD +IB 2

27 KW1-M114N-00X GUIDE AXIS 1

28 K87-M111R-00X SCREW, SET 5

29 K87-M111T-00X SCREW, SET 1

30 K87-M1120-10X SPROCKET ASSY 1

31 KW1-M1140-00X TAPE GUIDE ASSY 1 No.

Part No.

Part Name Q'ty Remarks Date Revised No.

1 KW1-M1110-00X BODY ASSY 1

2 KW1-M1112-00X KNOCK PIN 1 FRONT

3 KW1-M1113-00X KNOCK PIN 1 REAR

4 K87-M1115-00X CIRCULAR RIVET 2

5 KW1-M1150-00X HANDLE LEVER ASSY 1

6 KW1-M116F-00X LEVER AXIS PIN 1

7 KW1-M115D-00X GUIDE PIN ASSY 1

8 KW1-M116D-00X TENSION LEVER ASSY 1

9 KW1-M116F-00X LEVER AXIS PIN 1

10 K87-M1115-00X CIRCULAR RIVET 2

11 KW1-M1131-00X CLAMP LEVER UNIT 1

12 KW1-M1132-00X CLAMP LEVER ASSY 1

13 K87-M113A-00X CLANK ARM ASSY 1

14 K87-M113D-00X ARM 2

15 K87-M113E-00X HINGE PIN 2 1

16 K87-M11D7-00X CIRCLIP E 2

17 K87-M113L-10X CLAMP LEVER AXIS 1

18 K87-M113M-00X AXIS PIN 1

19 K87-M113H-00X PUSH PIN 1

20 K87-M111V-00X SCREW, SET 1

21 K87-M111R-00X SCREW, SET 1

22 KW1-M114L-00X COVER 1

23 KW1-M111T-00X SCREW, THIN HEAD 3

24 KW1-M116J-00X METAL SHAFT 1

25 K87-M11BA-00X SCREW, FLAT HEAD + 3

26 KW1-M1191-00X DRIVE ROLLER UNIT 1

27 KW1-M1192-00X INDENTATION LVR ASSY 1

28 KW1-M119F-00X DRIVE ROLLER ASSY 1

29 K87-M117B-00X PLANE WASHER 1

30 K87-M11BB-00X SCREW, FLAT HEAD + IB 1

31 KW1-M119K-00X SPRING 1

32 KW1-M119L-00X IDLE ROLLER ASSY 1

33 KW1-M119R-00X COLLAR 1

34 K87-M21BB-00X SCREW, TRUSS HEAD 1

35 KW1-M119P-00X SPRING 1 No.

Part No.

Part Name Q'ty Remarks Date Revised No.

1 KW1-M11D1-00X REEL HOLDER ASSY 1

2 KW1-M111S-00X SCREW, FLAT HEAD + 1

3 K87-M111S-00X SCREW, FLAT HEAD + 2 The procedures of Electronic Components inspection includes: ▪ Lable Verification to check if the part is original and consistent with the order

▪ Appearance Inspection to make sure the package is correct and there is no damage to the surface

▪ Package Inspection ▪ Third-party test conduction via our in-house, certified test labs for quality guarantee

▪ Picture archive for the shipping package Each step of the inspection is very rigorous and aims to ensure that all products are delivered with the expected standard of excellence and quality.
