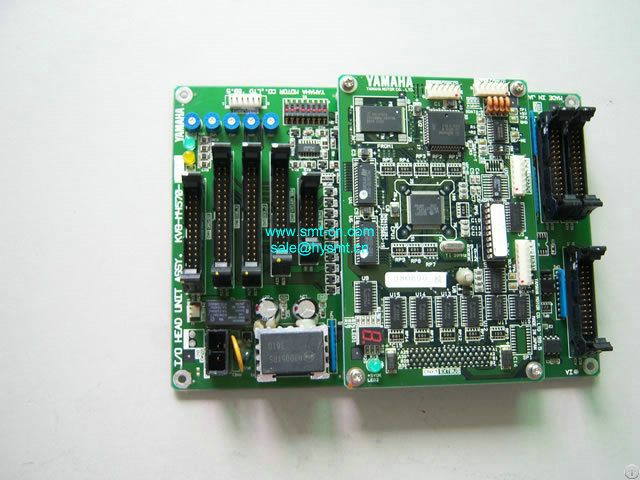

Kv8 M4570 00x Yv100x I O Head Unit Assy - China

Kv8-m4570-00x yv100x yv100x i o head unit assy other yamaha parts:

yv100x 1 kv1-m4110-00x box assy, c/r 1

2 km5-m4510-20x mother board assy.

1

3 km5-m5840-02x servo board assy.

1

4 km5-m4200-01x system unit assy.

1

4-1 km5-m4200-02x system unit assy 1 x2 m960134

5 kj0-m5810-k2x driver board assy.

1

5-1 kj0-m5810-k3x driver board assy 1 x1 m960067

6 km5-m441h-02x vision board assy.

1

7 km5-m5880-11x d.

power assy.

1

8 kj0-m4134-10x panel no servo 1

9 kj0-m4132-10x panel, no driver 2

10 km5-m4138-10x panel left 2 1

11 kj1-m4185-10x fan motor assy 3

12 kv1-m5303-00x sw power dc5 1

13 kv1-m5303-10x sw power dc12 1

14 kl0-m53e2-00x trans 1 assy kl0 1

no.

part no.

part name q'ty remarks date revised no.

1 km5-m5840-02x servo board assy.

1

2 kj0-m5810-h2x driver board assy.

1 for ytf only

2-1 kj0-m5810-h3x driver board assy 1 x1 m960067

3 kj0-m5810-g2x driver board assy.

1 for ats only

3-1 kj0-m5810-g3x driver board assy 1 x1 99/6 m960067

the procedures of electronic components inspection includes:

▪ lable verification to check if the part is original and consistent with the order

▪ appearance inspection to make sure the package is correct and there is no damage to the surface

▪ package inspection

▪ third-party test conduction via our in-house, certified test labs for quality guarantee

▪ picture archive for the shipping package each step of the inspection is very rigorous and aims to ensure that all products are delivered with the expected standard of excellence and quality.
