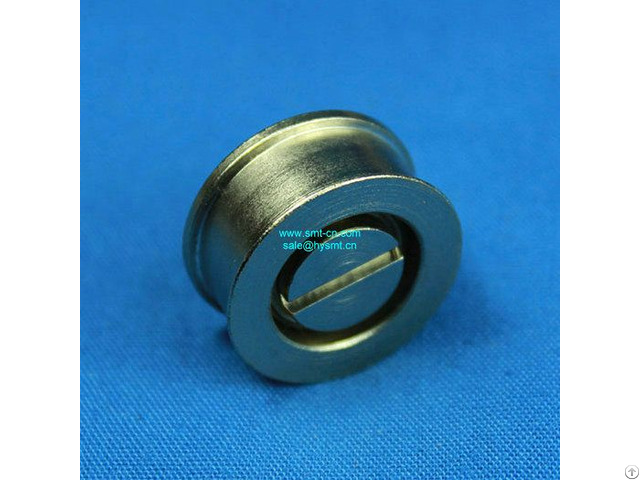

Kv7 M9140 A0x Yamaha Yv100x Pulley - China

KV7-M9140-A0X YAMAHA YV100X Pulley Other yamaha part：

No.

art No.

Part Name Q'ty Remarks Date Revised No.

1 KV7-M9101-00X STAY, FOOT 4

1-1 KV7-M9101-01X STAY, FOOT 4 Z2 99/9 M970075

2 KV7-M9102-00X PLATE 1 2

3 KV7-M9103-00X PLATE 2 2

4 KV7-M9106-00X BRKT.

1, EXT.

FRAME 1

5 KV7-M9107-00X BRKT.

2, EXT.

FRAME 1

6 KV7-M9108-00X BRKT.

3, EXT.

FRAME 1

7 KV7-M9109-00X BRKT.

4, EXT.

FRAME 1

8 KV7-M9105-00X BRKT., SPLINE 1

9 KV7-M9104-00X PLATE 3 2

10 KV7-M9116-10X GUIDE 2

10-1 90K71-0L0280 LM RAIL, 15(250) 2 X1 M9X0050

11 KV7-M9115-10X PLATE, LINEAR 2

12 KV7-M9111-01X BRKT., COLLAR 1

13 KG7-M9110-01X COLLAR, W 3

14 KV7-M9110-00X COLLAR 2, W 2

15 KV7-M9118-00X PLATE, BRG.

4

16 KG7-M9119-00X BRG 6200ZZ 2

17 KV7-M9132-10X BALL SCREW W 2

18 KV7-M9113-00X STAY, FRAME 2

19 KV7-M9114-00X BRKT., GUIDE 2

20 KV7-M9121-00X FRAME, CONV.

FIXED 1

21 KV7-M9122-00X FRAME CONV.

MOVING 1

22 KV7-M9127-00X FRAME 1, EXT.

2

23 KV7-M9128-00X FRAME 2, EXT.

2

24 KV7-M9123-00X GUIDE 1 4

25 KV7-M9126-00X GUIDE 1-1 4

26 KV7-M9124-00X PLATE 1, GUIDE 1

27 KV7-M9125-00X PLATE 2 GUIDE 1

28 KV7-M9126-10X GUIDE 1-2 4

29 KM7-M9113-00X GUIDE 1, END 2

30 KM7-M9114-00X GUIDE 2, END 2

31 KG7-M912A-00X BRACKET SENSOR 1

32 KV7-M9151-00X DAMPER 1, W 2

33 KV7-M9152-00X DAMPER 2, W 2

34 KV7-M9129-00X BELT 1, CONVEYOR 2

35 KV7-M9144-00X BRKT.

3, SENSOR 1

36 KG7-M9133-00X PLATE LOCATE PIN 2

37 KG7-M9135-00X PLATE EDGE 2 4

38 KG7-M9136-00X PLATE EDGE 3 2

39 KH2-M9121-00X BEARING 4

40 KV7-M4886-00X MOTOR ASSY.

6 1 CONV.

MO

41 KM0-M655F-10X SENSOR, 1-3 1

42 KM0-M9182-00X PLATE GUIDE 1

43 KG7-M9183-00X BRACKET BELT 1

44 KM8-M9189-00X GUIDE 1

45 KG7-M9127-00X STOPPER LOCATE PIN 1

46 KV7-M9188-00X BELT 1 1305-3GT-6

47 KV7-M9192-00X PLATE, IDLER 1

48 KV7-M9185-00X HOUSING, SHAFT 1

49 KV7-M9190-00X HANDLE 1

50 KV7-M9191-00X SHAFT 1 1

51 KV7-M9193-00X LEVER, CLAMP 1

52 KU0-M9194-00X WASHER 1

53 99009-15400 CIRCLIP : 1

54 KV7-M9195-00X BRKT., HOUSING 1

55 KV7-M9196-00X SHAFT 2 1

56 KH4-M655F-20X SENSOR 1-3 2

56-1 KU0-M655F-20X SENSOR, 1-3 2 X2 99/7 M960040

57 KV7-M9140-00X PULLEY, CONVEYOR 12

58 KV7-M9141-00X SHAFT, PULLEY 4

59 KV7-M9143-10X SPLINE 1 2

60 KV7-M9142-00X PILLEY 1, MOTOR 1

61 KH2-M9105-10X PULLEY MOTOR 4 3GTP30

62 KV7-M9146-00X BELT 2 300-3GT-9

63 KG2-M9105-00X PULLEY 1 SPLINE 1

64 KG2-M9108-10X COLLAR, CONVEYOR 1

65 KV7-M91B2-00X BRKT., SENSOR 1

66 KG7-M9111-01X PULLEY 1 1

67 KG7-M9112-01X PULLEY 2 1

68 KG7-M9113-01X PULLEY 3 1

69 90K50-4W072W AC SERVO MOTOR 1

69-1 90K55-4W072W AC SERVO MOTOR X3 M960053

70 KV7-M9147-00X BRKT., MOTOR W 1

71 KV7-M9148-00X BRKT., TENSION 2

72 K94-M9316-00X BEARING 4 608ZZ

73 KV7-M9149-00X COLLAR, BRG.

2

74 KG7-M9115-00X BELT W AXIS 1

75 KH2-M655E-00X SENSOR, 1-2 1

75-1 KV7-M653A-20X SENSOR 1 ASSY: L=300 1 X1 98/12 M8Y0077

76 KV7-M9150-00X DOG 1, ORIGIN 1

77 KV7-M9155-00X BRKT., SENSOR SHAFT 2

78 KV7-M9156-00X SENSOR SHAFT 1
