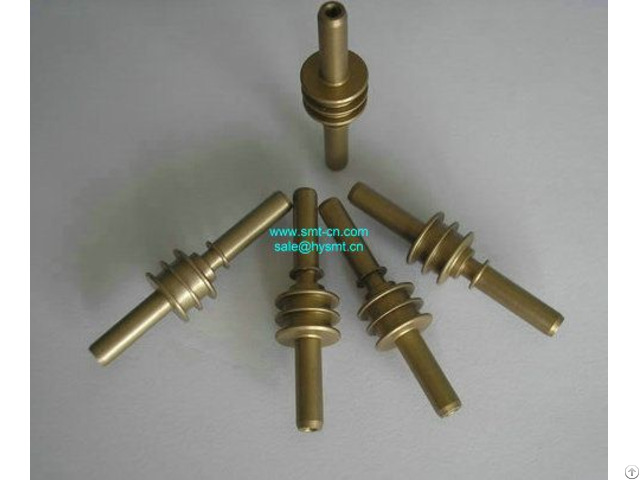

Km1 M7104 00x Yv100ii Yv100x Piston - China

Km1-m7104-00x yv100ii piston kv8-m7104-00x yv100x piston www dot smt-cn dot com

sale at hysmt dot cn other yamaha parts:

no.

part no.

part name q'ty remarks date revised no.

1 kv8-m7101-00x housing head 1

2 kv8-m7103-50x plug 4

3 k65-m257m-00x o-ring 3 24 s12.5

3-1 90200-01j125 o-ring 3 24 s12.5

4 km1-m7140-00x packing 16 myr-6

4-1 90990-22j003 packing 16 myr-6

5 kv8-m7103-10x plug 4

6 kv8-m7104-00x piston 8

7 km1-m7107-00x packing 8 lo43165

7-1 90990-22j006 packing 8 lo43165

8 km1-m7141-00x packing 16 mya-10a

8-1 90990-22j002 packing 16 mya-10a

9 kv8-m71rj-00x collar brg.

8

10 kg7-m7137-a0x leaf spring 16

11 kg7-m7169-00x screw 16 m2x3

12 kg7-m7170-00x washer 16

12-1 90990-28j002 washer plain 2 13 kgb-m7184-00x bolt, hex.

s.

h 7 m3x60

14 92a08-03303 set screw 16 m3x3

15 kv8-m71vs-00x collar, sensor 12

16 kgb-m7183-00x plate, ejector 1

17 kv8-m7109-00x collar 1, head 4

18 kv8-m7110-00x collar 2, head 4

19 90933-03j128 brg.

24 mf128zzs

20 kgb-m7167-00x pulley 8

21 kv8-m7154-00x spg.

return 8

22 kv8-m7108-00x nut 8

23 90933-02j604 brg.

8 604zz

24 99001-03600 circlip 8

25 ku1-m7152-00x washer 1 thurust 8

26 kv8-m71r7-50x plate bearing 4

27 kgb-m7111-00x pully, post 1

28 kv8-m7115-00x shaft 1 tension 4

29 kgb-m7116-00x pully 2 1

30 kv8-m7117-00x block, adjust 1

31 kv8-m7119-00x block, adjust 1

32 kv8-m7131-00x bracket, z sensor 1

32-1 kv8-m7131-01x bracket, z sensor 1 m110051

33 kv8-m7166-00x plate, valve 1

34 kgb-m71vc-00x holder pulley 1 35 92a08-04305 set screw m4x5

36 kgb-m71y1-01x collar 1 pulley 1

37 99009-10800 circlip 1 istw-10

38 kgb-m71y9-50x body, cylinder 1

39 kv8-m71yb-00x packing 8

39-1 90990-22j005 packing 8

40 91317-05006 bolt hex.

socket head 8 41 km1-m7105-00x plug 2 8

42 km1-m7112-01x stopper 1

43 kgb-m7181-00x belt, head 2

44 km1-m7186-00x o-ring 8 5x1.0

44-1 90990-17j007 o-ring 8 5x1.0

45 kv8-m653f-a0x sensor 3 assy 4 e2s-q22 (down 1, 3, 5, 7)

46 kv8-m653g-a0x sensor 4 assy 4 e2s-q22b (down 2, 4, 6, 8)

47 kgb-m653a-00x sensor head assy 3

47-1 kgb-m653a-01x sensor head assy 1 2004.03.18 m430057

47-2 kgb-m653a-02x sensor head assy 1 2005.07.21 mb70010

48 kgb-m653f-10x sensor 3 assy 1 ee-sx872p

49 93604-06083 pin dowel 6 4x6

49-1 90990-02j001 pin dowel 4 2002.02.19 m220087

50 99480-04008 pin parallel 8 4x8

51 90110-03248 bolt hexa.s.h 7 m3x55

51-1 91317-03055 bolt hex.

socket head 3 52 92d18-02006 bolt hex 12 m2x0.4x6

52-1 90115-02j008 bolt hex.

socket head 12 53 $km-05 muffler 7

54 $slh8-01 joint 2

55 $tsh6-01 joint 2

56 kg2-m7181-00x packin 24 mya-4

56-1 90990-22j001 packin 24 mya-4

57 kv8-m7162-00x solenoid valve 1

58 kgb-m7163-00x ejector, resin 1

59 kv8-m71vb-00x cover sensor 1

60 km1-m4592-12x vac sensor board assy 8

60-1 km1-m4592-13x vac sensor board 8 mb40065

61 kgb-m7169-00x spacer 1

62 kgb-m7170-00x gear 1 1

63 kgb-m7171-00x gear 2 1

64 kgb-m7172-00x collar 1, gear 1

65 kgb-m7173-00x collar 2, gear 1

66 kgb-m7174-00x shaft, gear 1

67 90933-02j085 bearing 2 mr85zzs

70 kgb-m7179-00x cover, gear 1

71 kgb-m7185-00x plate 2, nut 1

72 90933-01j800 bearing 2

73 kgb-m712s-a0x std.

shaft 1, spare 1 spare parts

74 kgb-m713s-a0x std.

shaft 2, spare 1 spare parts

75 kv8-m7103-b0x plug assy 4

76 kv8-m7103-c0x plug assy 4

77 kv8-m7104-a0x plug assy 8

78 kgb-m71s0-50x std.

shaft 3, spare 1 spare parts 2002.10.18 m200051

79 kgb-m71y9-b0x body bracket assy 1 m110144

80 km1-m7105-a0x plug 2 assy 8

81 kgb-m71vd-00x nut gear 1 2004.02.03 m420001

82 kgb-m7163-a0x ejector 1 spare parts

83 km1-m7163-20x valve 1 spare parts

84 km1-m7163-30x valve 1 spare parts

85 m46-m8527-c0x filter 1 spare parts m120012

90990-17j00b o-ring 1 spare parts

delete (2006.12.11) mcy0027

km5-m7174-f0x filter cap 1 spare parts m120012

88 90990-17j010 o-ring 1

89 km5-m7174-g0x filter cap 1

90 kv8-m7162-20x valve 1 spare parts

91 kv8-m7162-10x valve 1 spare parts

92 91317-04030 bolt, hex.

s.

h 4 m4x30 mc90097 the procedures of electronic components inspection includes: ▪ lable verification to check if the part is original and consistent with the order

▪ appearance inspection to make sure the package is correct and there is no damage to the surface

▪ package inspection ▪ third-party test conduction via our in-house, certified test labs for quality guarantee

▪ picture archive for the shipping package each step of the inspection is very rigorous and aims to ensure that all products are delivered with the expected standard of excellence and quality.
