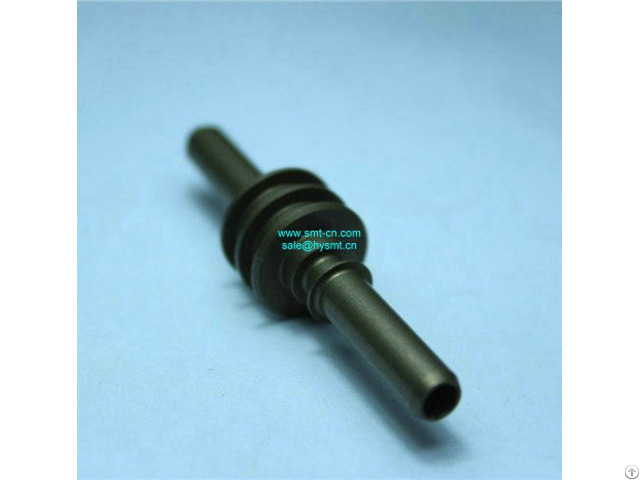

Km1 M7104 00x Yamaha Piston - China

KM1-M7104-00X YAMAHA PISTON Other yamaha parts:

No.

Part No.

Part Name Q'ty Remarks Date Revised No.

1 KV8-M7101-00X HOUSING HEAD 1

2 KV8-M7103-50X PLUG 4

3 K65-M257M-00X O-RING 3 24 S12.5

3-1 90200-01J125 O-RING 3 24 S12.5

4 KM1-M7140-00X PACKING 16 MYR-6

4-1 90990-22J003 PACKING 16 MYR-6

5 KV8-M7103-10X PLUG 4

6 KV8-M7104-00X PISTON 8

7 KM1-M7107-00X PACKING 8 LO43165

7-1 90990-22J006 PACKING 8 LO43165

8 KM1-M7141-00X PACKING 16 MYA-10A

8-1 90990-22J002 PACKING 16 MYA-10A

9 KV8-M71RJ-00X COLLAR BRG.

8

10 KG7-M7137-A0X LEAF SPRING 16

11 KG7-M7169-00X SCREW 16 M2X3

12 KG7-M7170-00X WASHER 16

12-1 90990-28J002 WASHER PLAIN 2 13 KGB-M7184-00X BOLT, HEX.

S.

H 7 M3X60

14 92A08-03303 SET SCREW 16 M3X3

15 KV8-M71VS-00X COLLAR, SENSOR 12

16 KGB-M7183-00X PLATE, EJECTOR 1

17 KV8-M7109-00X COLLAR 1, HEAD 4

18 KV8-M7110-00X COLLAR 2, HEAD 4

19 90933-03J128 BRG.

24 MF128ZZS

20 KGB-M7167-00X PULLEY 8

21 KV8-M7154-00X SPG.

RETURN 8

22 KV8-M7108-00X NUT 8

23 90933-02J604 BRG.

8 604ZZ

24 99001-03600 CIRCLIP 8

25 KU1-M7152-00X WASHER 1 THURUST 8

26 KV8-M71R7-50X PLATE BEARING 4

27 KGB-M7111-00X PULLY, POST 1

28 KV8-M7115-00X SHAFT 1 TENSION 4

29 KGB-M7116-00X PULLY 2 1

30 KV8-M7117-00X BLOCK, ADJUST 1

31 KV8-M7119-00X BLOCK, ADJUST 1

32 KV8-M7131-00X BRACKET, Z SENSOR 1

32-1 KV8-M7131-01X BRACKET, Z SENSOR 1 M110051

33 KV8-M7166-00X PLATE, VALVE 1

34 KGB-M71VC-00X HOLDER PULLEY 1 35 92A08-04305 SET SCREW M4X5

36 KGB-M71Y1-01X COLLAR 1 PULLEY 1

37 99009-10800 CIRCLIP 1 ISTW-10

38 KGB-M71Y9-50X BODY, CYLINDER 1

39 KV8-M71YB-00X PACKING 8

39-1 90990-22J005 PACKING 8

40 91317-05006 BOLT HEX.

SOCKET HEAD 8 41 KM1-M7105-00X PLUG 2 8

42 KM1-M7112-01X STOPPER 1

43 KGB-M7181-00X BELT, HEAD 2

44 KM1-M7186-00X O-RING 8 5X1.0

44-1 90990-17J007 O-RING 8 5X1.0

45 KV8-M653F-A0X SENSOR 3 ASSY 4 E2S-Q22 (DOWN 1, 3, 5, 7)

46 KV8-M653G-A0X SENSOR 4 ASSY 4 E2S-Q22B (DOWN 2, 4, 6, 8)

47 KGB-M653A-00X SENSOR HEAD ASSY 3

47-1 KGB-M653A-01X SENSOR HEAD ASSY 1 2004.03.18 M430057

47-2 KGB-M653A-02X SENSOR HEAD ASSY 1 2005.07.21 MB70010

48 KGB-M653F-10X SENSOR 3 ASSY 1 EE-SX872P

49 93604-06083 PIN DOWEL 6 4X6

49-1 90990-02J001 PIN DOWEL 4 2002.02.19 M220087

50 99480-04008 PIN PARALLEL 8 4X8

51 90110-03248 BOLT HEXA.S.H 7 M3X55

51-1 91317-03055 BOLT HEX.

SOCKET HEAD 3 52 92D18-02006 BOLT HEX 12 M2X0.4X6

52-1 90115-02J008 BOLT HEX.

SOCKET HEAD 12 53 $KM-05 MUFFLER 7

54 $SLH8-01 JOINT 2

55 $TSH6-01 JOINT 2

56 KG2-M7181-00X PACKIN 24 MYA-4

56-1 90990-22J001 PACKIN 24 MYA-4

57 KV8-M7162-00X SOLENOID VALVE 1

58 KGB-M7163-00X EJECTOR, RESIN 1

59 KV8-M71VB-00X COVER SENSOR 1

60 KM1-M4592-12X VAC SENSOR BOARD ASSY 8

60-1 KM1-M4592-13X VAC SENSOR BOARD 8 MB40065

61 KGB-M7169-00X SPACER 1

62 KGB-M7170-00X GEAR 1 1

63 KGB-M7171-00X GEAR 2 1

64 KGB-M7172-00X COLLAR 1, GEAR 1

65 KGB-M7173-00X COLLAR 2, GEAR 1

66 KGB-M7174-00X SHAFT, GEAR 1

67 90933-02J085 BEARING 2 MR85ZZS

70 KGB-M7179-00X COVER, GEAR 1

71 KGB-M7185-00X PLATE 2, NUT 1

72 90933-01J800 BEARING 2

73 KGB-M712S-A0X STD.

SHAFT 1, SPARE 1 SPARE PARTS

74 KGB-M713S-A0X STD.

SHAFT 2, SPARE 1 SPARE PARTS

75 KV8-M7103-B0X PLUG ASSY 4

76 KV8-M7103-C0X PLUG ASSY 4

77 KV8-M7104-A0X PLUG ASSY 8

78 KGB-M71S0-50X STD.

SHAFT 3, SPARE 1 SPARE PARTS 2002.10.18 M200051
