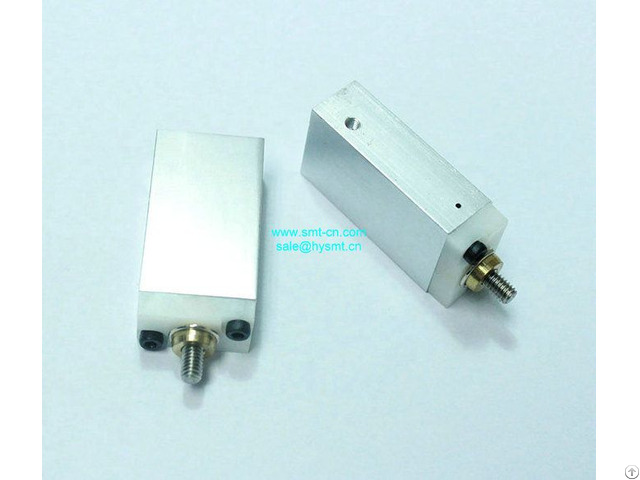

Kjk M1285 01 Yamaha Ft Fs 8mm Feeder Cylinder - China

Kjk-m1285-01 yamaha ft fs 8mm feeder cylinder other yamaha parts:

no.

part no.

part name q'ty remarks

1 khj-mc501-00 body, feeder 1

2 khj-mc502-00 cover, feeder 1

3 khj-mc106-00 plate, under 1

4 khj-mc206-00 plate, under 1

5 khj-mc50c-00 seal, main label 1

6 khj-mc510-00 motor, feed 1

7 khj-mc532-00 sprocket 1

8 khj-mc534-00 gear, idle f1 1

9 khj-mc535-00 gear, idle f2 1

10 khj-mc53r-00 gear, idle f3-1 1

11 khj-mc53s-00 gear, idle f3-2 1

12 khj-mc537-00 gear, idle f4 1

13 khj-mc538-00 gear, driven 1

14 khj-mc13d-00 spring, pusher plate 3

15 khj-mc53e-00 bolt hex.

s/h low 1

16 90990-08j021 screw, stad 2

17 khj-mc53h-00 shaft, idle gear f2 1

18 khj-mc53j-00 shaft, idle gear f3 1

19 khj-mc53k-00 shaft, idle gear f4 1

20 khj-mc53l-00 cover, feed gear 1

21 khj-mc53m-00 sub-bush, sprocket 1

22 khj-mc53n-00 pin, dowel 1

23 khj-mc561-00 box, top tape 1

24 khj-mc562-00 cover, top tape box 1

25 khj-mc165-00 magnet, tail 1

26 khj-mc566-00 block, p/o tooth 1 1

27 khj-mc46t-00 bolt hex.

s/h low 2

28 khj-mc56u-00 tail cover assy.

1

29 90166-02ja03 screw, pan head 1

30 90115-2aj008 bolt hex.

socket head 3

31 91312-03012 bolt, hex.

socket head 2

32 91312-03022 bolt, hex.

socket head 5

33 91312-03030 bolt, hex.

socket head 1

34 91317-03020 bolt hex.

socket head 6

35 91317-03030 bolt hex.

socket head 1

36 98707-03006 screw, flat head 4

37 99480-03010 pin, parallel 8 the procedures of electronic components inspection includes: ▪ lable verification to check if the part is original and consistent with the order

▪ appearance inspection to make sure the package is correct and there is no damage to the surface

▪ package inspection ▪ third-party test conduction via our in-house, certified test labs for quality guarantee

▪ picture archive for the shipping package each step of the inspection is very rigorous and aims to ensure that all products are delivered with the expected standard of excellence and quality.
