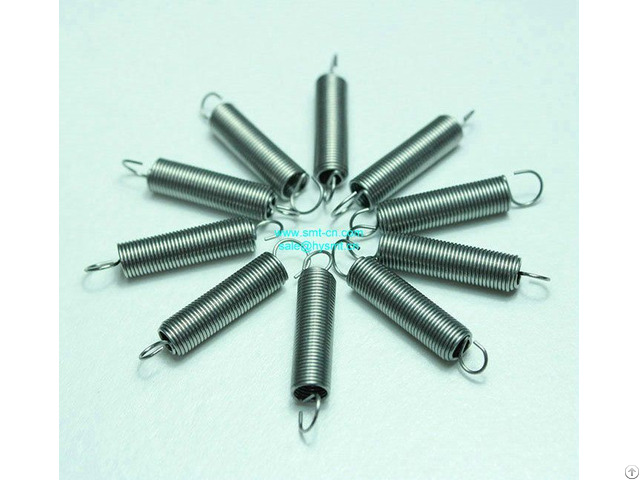

Kjk M119k 100 Yamhaha Reel Spring - China

​KJK-M119K-100 YAMHAHA Reel Spring Other yamaha parts:

No.

Part No.

Part Name Q’ty Remarks Change Compati.

1 KHJ-MC10E-00 SCREW, FLAT HEXLOBE 11

2 KHJ-MC210-10 MOTOR, PEEL 1

2-1 KHJ-MC210-11 MOTOR, PEEL 1 (2011/4/13) NG

3 KHJ-MC13F-00 SCREW, STAD 4

4 KHJ-MC251-00 GEAR, IDLE P1 1

5 KHJ-MC252-00 GEAR, IDLE P2 1

6 KHJ-MC253-00 GEAR, IDLE P3 1

7 KHJ-MC254-00 GEAR, IDLE P4 1

8 KHJ-MC256-00 ROLLER, PEEL OFF 1 1

9 KHJ-MC258-00 COVER, IDLE GEAR 1 1

10 KHJ-MC259-00 COVER, IDLE GEAR 2 1

11 KHJ-MC25A-00 SUB-ROLLER, 1 1

15 KHJ-MC25E-00 COVER, IDLE GEAR 3 1

16 KHJ-MC26E-00 SPRING, P/O LEVER 1

17 KHJ-MC16H-00 SCREW, PAN HEAD TAP.

3

18 KHJ-MC26V-00 P/O LEVER ASSY.

1

19 KHJ-MC1A1-00 BOX, EL 1

20 KHJ-MC1A2-00 COVER, BOX EL 1

21 KHJ-MC1A6-00 SCREW, FLAT HEXLOBE T 3

22 KHJ-MC1A9-00 CONNECTOR, BOARD 1

23

24 90115-2AJ008 BOLT HEX.

SOCKET HEAD 2

25 90166-02JA03 SCREW, PAN HEAD 2

26 90166-02JA08 SCREW PAN H: M2.5X8 2

27 91317-03006 BOLT HEX.

SOCKET HEAD 3

27-1 KHJ-MC11T-00 BOLT, LOCK S/H 3 (2011/4/22) OK

28 92A08-03303 SET SCREW M3X3 5

29 99480-05018 PIN, PARALLEL 1 The procedures of Electronic Components inspection includes: ▪ Lable Verification to check if the part is original and consistent with the order

▪ Appearance Inspection to make sure the package is correct and there is no damage to the surface

▪ Package Inspection ▪ Third-party test conduction via our in-house, certified test labs for quality guarantee

▪ Picture archive for the shipping package Each step of the inspection is very rigorous and aims to ensure that all products are delivered with the expected standard of excellence and quality.
