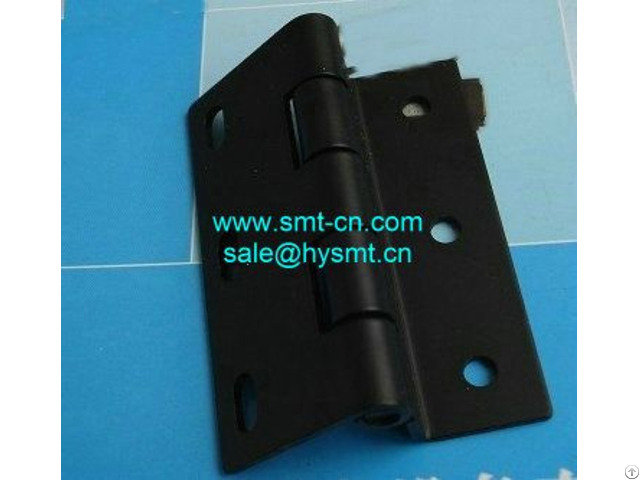

K46 M1374 10x Hinge - China

K46-M1374-10X HINGE Other yamaha parts:

No.

Part No.

Part Name Q'ty Remarks Date of change Revised No.

Compati.

1 KGA-M1301-A0X COVER 1 ASSY 1

2 KGA-M1302-A0X COVER 2 ASSY 1

2-1 KGA-M1302-A1X COVER 2 ASSY 1 3 KGA-M1303-A0X COVER 3 ASSY 1

3-1 KGA-M1303-A1X COVER 3 ASSY 1 4 KGA-M1304-A0X COVER 4 ASSY 1

5 KV7-M1305-00X COVER 5 2

6 KGA-M1306-A0X COVER 6 ASSY 1

7 KGA-M1307-A0X COVER 7 ASSY 1

8 KGA-M1308-A0X COVER 8 ASSY 1

9 KGA-M1309-A0X COVER 9 ASSY 2 S.T.D

10 KM0-M1331-01X BRACKET GAS DAMPER 4

11 KM8-M1338-01X BRACKET MAIN SWITCH 1

12 KV7-M1336-00X BKT CORNER L BACK 1

13 KV7-M1337-00X BKT CORNER L FRONT 1

14 KV7-M1339-00X BKT CORNER R BACK 1

15 KV7-M1340-01X BRACKET 1 COVER 9 2

16 KV7-M1341-02X BRACKET 2 COVER 9 2

17 KV7-M1342-00X BRACKET 3 COVER 9 2

18 KV7-M1343-01X BRACKET 4 COVER 9 2

19 KV7-M1349-00X PLATE 2 NUT 4

20 K46-M1374-10X HINGE 2 4

21 KH2-M1324-00X GRIP 4

22 KL3-M1348-10X GAS SPRING 4

23 KM0-M1346-00X SHOULDER BOLT 8

24 KGA-M1318-00X COVER 18 1

25 K93-M1392-00X SPACER 4 TM-180-303

26 KV7-M1329-00X COVER 29 2

27 KM0-M1335-00X BKT 1 GATE COVER 7

28 KM0-M1332-00X BRACKET MAGNET 4

28-1 KM0-M1332-01X BRACKET MAGNET 4 M190064 OK

29 K93-M1388-00X MG.

CATCH 4 TL-77S

29-1 KV5-M1130-00X CATCH MG.

4 M190064 OK

30 KGB-M13D6-00X SEAL 1(YV100XG) 1

30-1 KGB-M13D6-01X SEAL 1(YV100XG) 1 M300086 OK

30-2 KGB-M13D6-02X SEAL 1(YV100XG) 1 MA60120 OK

31 KW7-M13D7-00X SEAL 2 1

31-1 KW7-M13D7-01X SEAL 2(YAMAHA) 1 MA60120 OK

32 KV7-M1350-00X CAP PATLIGHT 1

33 KGA-M1356-00X PLATE 1, JOINT 2

34 KGA-M1357-00X PLATE 2, JOINT 2

35 KGA-M1391-00X PLUG (50) 1

36 KGA-M1392-00X PLUG (30) 2

37 K16-90101-08X BOLT: TP-M4X8 7

38 KL3-M1381-02X PLATE 1 KEY BOARD 1

39 KL3-M1382-01X PLATE 2 KEY BOARD 1

39-1 KGT-M1382-00X PLATE 2, KEYBOARD 1 M300005 NG

40 KV7-M1391-10X PLUG 4

41 90K41-000190 WARNING SEAL (1) 2

41-1 90K41-000360 LABEL, ALERT 2 MA70069 42 90K41-000230 WARNING SEAL (2) 2

42-1 90K41-000220 WARNING SEAL(2) 2 M110125 OK

42-2 90K41-000230 WARNING SEAL(2) 2 M150004 OK

42-3 90K41-000350 LABEL, ALERT 2 MA70069 OK

43 KGA-M1309-00X COVER 9-1 2 S.T.D

44 KGA-M130A-00X COVER 9-2 2

45 K16-90101-12X BOLT: TP-M4X12 6

46 KGA-M13B9-00X HOOK 1

47 KV7-M8880-20X BRUSH, FEEDER 1 The procedures of Electronic Components inspection includes: ▪ Lable Verification to check if the part is original and consistent with the order

▪ Appearance Inspection to make sure the package is correct and there is no damage to the surface

▪ Package Inspection ▪ Third-party test conduction via our in-house, certified test labs for quality guarantee

▪ Picture archive for the shipping package Each step of the inspection is very rigorous and aims to ensure that all products are delivered with the expected standard of excellence and quality.
