Isolated Single Output Power Converters - China

Part Number Nominal Input Voltage Output Voltage

V V

TPLE0303D 3.3 3.3

TPLE0305D 3.3 5

TPLE0505D 5 5

TPLE0509D 5 9

TPLE0512D 5 12

TPLE0515D 5 15

TPLE0303S 3.3 3.3

TPLE0305S 3.3 5

TPLE0505S 5 5

TPLE0509S 5 9

TPLE0512S 5 12

TPLE0515S 5 15

TPLE1205D 12 5

TPLE1209D 12 9

TPLE1212D 12 12

TPLE1215D 12 15

TPLE1205S 12 5

TPLE1209S 12 9

TPLE1212S 12 12

TPLE1215S 12 15

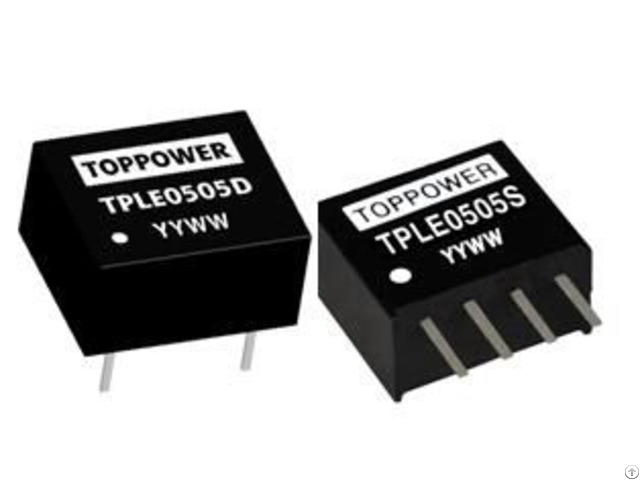

The TPLE series are miniature, isolated low power and high efficiency DC/DC converters in a SIP and DIP package.

They offer the ideal solution in many space critical applications for board level power distribution.

The Internal SMD construction makes it possible to offer a product with high performance at low cost, The series offers smaller size, improved efficiency, lower output ripple noise and 1KVDC isolation.

Operating temperature range from -40 ºC to 85 ºC.

Company Contact:

• Posted By: TOPPOWER

• Phone: 862062162688-809

• Address: Building No.3 ,Rui Fa Road No.15,, Guangzhou , Guangdong , China

• Email:

• Website: https://en.gztoppower.com

• Business Description: Toppower is a professional manufacturing enterprise of DC DC converters.

  We focus on miniature DC DC converters researches, produces and markets,

  Our products have been used in many fields; such as: Industrial Control

  System, Power system, Apparatus and Instrument, Medical facilities, Rail

  transit system, Telecommunication Equipment, Security and Protection

  Equipment and Military Industrial System etc.

  Toppower owns an outstanding researching team.

  The products are 100% inspected and tested automatically by the advanced testing equipment.

  The unique product design, manufacturing process and equipment make our products with high efficiency and very good reliabilities.

  All DC DC converters are made with high quality spare parts and UL 94V 0 package material from the international prestigious suppliers.

  As well, the products meet ROHS requirement and covers 40+ series with thousands of variants from 1 to 50W for your choice.

  Our team targets to support you with professional products and service.

  We also have stocks for the popular variants so as to meet your emergency needs on time.

  we,TOPPOWER can produce:

  0.1W-400W DC-DC converters,1W-30W AC-DC converters,(SIP/DIP/SMD)

  15W-1200W Enclosed /Open frame/DIN RAIL type AC-DC Switching Power supply,

  TOPPOWER quality : ISO9001: 2015, IATF16949: 2016

  Guangzhou Top Power electronics Technology Co., Ltd
