Ip 65 P4 Outdoor Rental Die Casting Aluminum Led Display - China

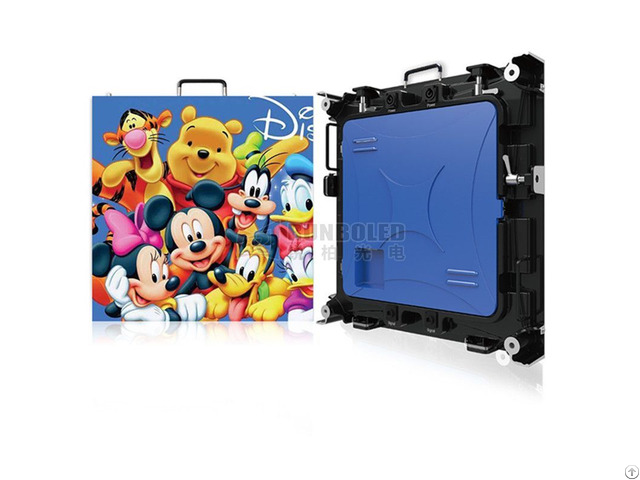

IP 65 P4 Outdoor Rental Die-Casting Aluminum LED Display

Full Color P4 Outdoor Wall

P4 Outdoor Rental LED Display is one of Runbo’s small pitch outdoor display products.

With its good quality and high resolution which are widely used for some small sizes outdoor screens.

It is widely used for outdoor events rental, conference rental, wedding ceremony, musical concert and so on.

With high refresh rate over 3840 hz, enables no scanning lines for the screen when shooting by cameras.

Features of our Color Uniformity LED Display:

1 - Die-casting aluminum cabinet with light weight

2 - Fast lock for quick installation, help saving time for events arrangement.

3 - Seetronic connectors for power and data, making sure the long lifetime of plug in and plug out.

4 - High quality raw materials for screen like nationstar lamp or kinglight lamp with ICN 2153 for high refresh rate.

5 - Very good flatness for led screen installation

Specification of High Brightness LED Display:

Parameter Technical of P4 Outdoor Rental LED Screen with Die-casting Aluminum Cabinet

Item Model Parameter

LED Module Info.

Pixel Pitch P4 Outdoor Rental LED Lamp SMD1921/SMD2525 IC Driver MBI5124/ICN2153 LED Module Size 256*128mm LED Module Resolution 64*32dots Color Temperature 3000-9000K Drive Mode 1/8 scan

LED Cabinet Info.

Cabinet Size 512*512*mm or 768mm x 768mm Cabinet Resolution 128*128dots /192*192dots Cabinet Material Die-casting Aluminum Cabinet LED Module Quantities 2*4=8pcs /3*6=18pcs Cabinet Net Weight 8kg/pc / 11.5 kg/pc

LED Display Info.

Best Viewing Distance 4m-100m Viewing Angle H: 140°/ V: 140° Pixel Density 160000dots/㎡ Brightness 800-1000nits/sqm Max.

Power Consumption 1200W/㎡ Ave.

Power Consumption 400W/㎡ Refresh Rate 1920Hz-3840H, can be adjusted

Control System Info.

Operating System WIN98/2000/NT/XP Control Method Synchronous display with control PC by DVI or Asynchronous with Wifi/4G/USB Control System Linsn, Nova-star, Colorlight or as you required Display Content Video, DVD, VCD, TV, picture, cartoon, graphics, texts.

etc.

Frame Frequency 50Hz or 60Hz Transmission Distance Multi mode fiber <500m, single mode fiber <30km, internet cable<100m

Operation Info.

Working Temperature -40℃--+60℃ Storage Temperature -30℃--+80℃ Input Voltage AC110V/AC220V Humidity Environment 10%-95% Lifespan 100, 000hours MTBF 10, 000hours Certificate CE, CCC, FCC, ROHS, ISO9001 Tags:
