Hollow Type Size 3mm 70mm Flat Pcb Pancake Slip Ring - China

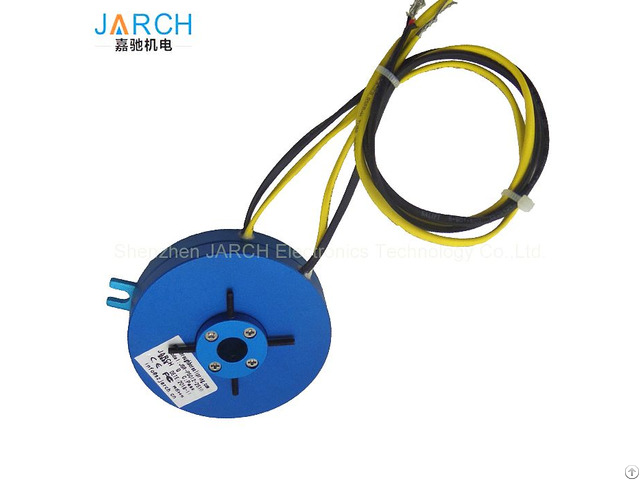

In certain applications where a cylindrical shape slip ring will simply not fit into the available space or a very low profile is needed, a pancake or platter style slip ring can be used.

The PS045 bore size 45mm, uses JARCH's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates The PS045, with 2 ~ 10 circiuts and compact 45mm body thickness, which we call our disk slip ring .

Specification: Operating Speed 0-200 rpm

Number of Circuits 2 ~ 10

Voltage 240 VAC/DC

Current Rating 10A per circuit

Temperature Range -20°C to +80°C

Contact Material Gold to Gold

Lead Size 22# silver plated copper

Lead Length Standard 250 mm(9.843inch)

Dielectric Strength ≥500 VAC @50Hz, between each circuit

Insulation Resistance 100 MΩ @ 500 VDC

Electrical Noise 5mΩMin Contact Us

If you have any questions, please contact us without any hesitation.

Shenzhen JARCH Electronics Technology Co., Ltd. Main Item list: slip ring, rotary union, fiber optic rotary joint(FORJ), hose reel/cable reel, carbon brush, brush holder.
