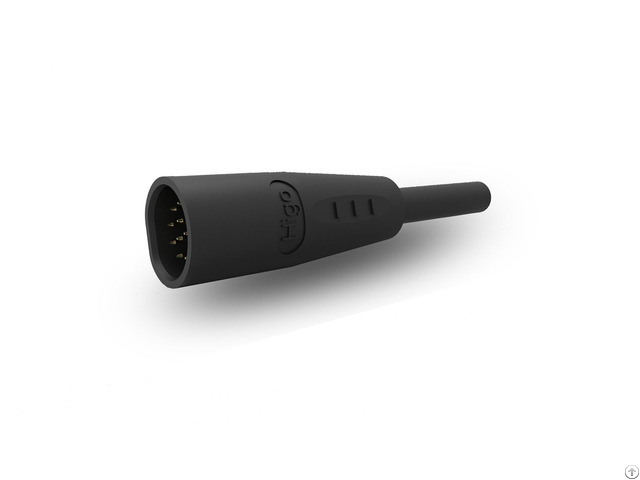

Higo Connector F S Z1211 - China

Higo connector-f.

s-z1211

12 pin gives more functions

waterproof signal connector cable

customized solutions

waterproof signal connector electrical characteristics

rated voltage 48v ac

rated current 2a

withstanding voltage 500v

insulation resistance ≥20mΩ

contact resistance ≤10mΩ

mechanical characteristics

mating type insertion force 80n max, extraction force 30n min

mating cycles 200times

performance

operation temperature -25℃~+80℃

protection degree ip67

wires specification

max outer diameter 11mm

mating length 53mm

contact material copper alloy plated with gold which conforms to military standard

wire section 0.14mm²

we are professional signal connector supplier, we also support customized signal connector.
