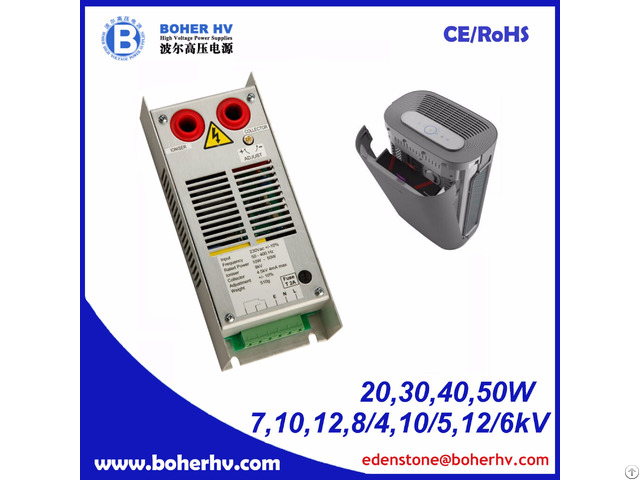

High Voltage Ventilation Purification Power Supplies With Uk Technology Cf01a - China

The CF01A range of power supplies are specifically designed for application in air and oil purification systems.

They are available with either single or dual outputs, and with a wide range of output voltages.

The power supplies are protected from overload, short circuit and sparks.

They are able to be used off-load without any changes in output voltage.

Input specifications

Input voltage range 115VAC (105 - 125VAC)

220VAC (200 - 240VAC)

Input current Less than 400mA at 220VAC

CF01A 7/3.5 Ionizer / Collector 7kV / 3.5kV

CF01A 8/4 Ionizer / Collector 8kV / 4kV

CF01A 9/4.5 Ionizer / Collector 9kV / 4.5kV

CF01A 10/5 Ionizer / Collector 10kV / 5kV

CF01A 11/5.5 Ionizer / Collector 11kV / 5.5kV

CF01A 12/6 Ionizer / Collector 12kV / 6kV

Company Contact:

• Posted By: SUQIAN BOER HIGH VOLTAGE POWER SUPPLIES CO.LTD

• Phone: +8652788068787

• Address: 79,Yandangshan Rd, Suyu district, Suqian,Jiangsu Province, China, Suqian , Jiangsu , China

• Email:

• Website: http://www.boherhv.com

• Business Description: Company Profile

  Suqian Boer High Voltage Power Supplies Co., Ltd，is a sole-funded enterprise invested by British Genvolt High Voltage.

  Ltd, the worlds top HV power supply manufacturer.

  The manufacturing base is located in Suqian City, Jiangsu province, China.

  The technology service center is in Haidian District, Beijing and the R&D center is in the headquarter of UK.

  Genvolt.

  Genvolt can trace its roots to Brandenburg Ltd., a company which for several decades was almost synonymous with high voltage.

  The power range of Boer power supply unit is from 1w ~ 300kW and voltage covers from 100V ~ 500kV.

  The applications of Boer product include X ray analysis, electron beam welder (EBM), electron accelerator, capacitor charging, Lab HV.

  power supplies, medical CT, environment-protecion industries, cable inspection, underwater robot power supplies, laser equipments, etc.

  Numbers of international prestigious research institutes and enterprises are our long-term clients, such as:

  The biggest Particle Physics Research Laboratories, CERN, The European Organization for Nuclear Research.

  The world-renowned Rutherford Appleton Laboratory RAL, Siemens, BAE Systems.

  And MBDA, E2V, IRM, SURESCAN, AIRINSPACE companies.

  Photoelectric institute of Chinese Academy of Sciences, Space Center of Chinese Academy of Sciences, institute of mechanics of Chinese Academy of Sciences, the Institute of Electrical Engineering of Chinese Academy of Sciences.

  Oxford University, Beijing University, Qinghua University, Chongqing University, The Hong Kong Polytechnic University, Xi'an Jiaotong University.
