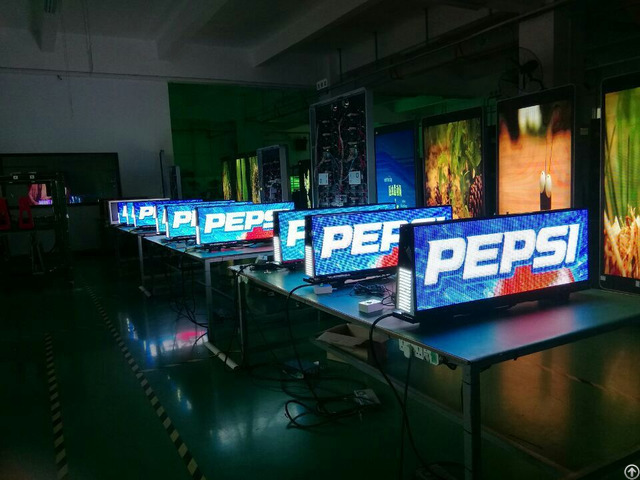

High Refresh Rate Taxi Top Led Display - China

Product name: P5 P2.5 P3 Model Type: TS59632 TS3VF TS3OT

Pixel Pitch 5mm 2.5 mm 3mm

LED Type SMD 2727 SMD 2121 SMD2020

Pixel Density 40000 dot/ m2 160, 000 dot/ m2 111, 111 dots

Module Size 160*160mm 160*160mm 192*96mm

Screen Size 960mm*320mm 960mm*320mm 768*288mm

Screen Resolution 192*64 dot 384*128 dot 192*96mm

Frame Size 1100mm( L) x 410mm(H) XW: 164mm(bottom)/ 99mm (top) 1100mm( L) x 410mm(H) XW: 164mm(bottom)/ 99mm (top) 820mm( L) x 390mm(H) X W: 170mm(bottom)/ 99mm (top)

Brightness 5500 nit 5000 nit 3500 nit

Contrast 8000: 1 8000: 1 8000: 1

View Angle 150°(H)/150°(V) 150°(H)/150°(V) 150°(H)/150°(V)

Scan Mode 1/8 scan 1/16 scan 1/16 scan

Power Supply Input DC9--24V DC9--24V DC9--24V

Max Consumption 450w 480w 250w

Average Consumption 150w 180w 80w

Refresh Rate(Hz): Ordinary: .

=85Hz Ordinary: .

=85Hz Ordinary: .

=85Hz

1920Hz 1920Hz 1920Hz

Optimal Viewing Distance 3--50M 1--20M 3--50M

Life Span 100, 000 Hours 100, 000 Hours 100, 000 Hours

MTBF 10, 000 Hours 10, 000 Hours 10, 000 Hours

Control Method Asychronous Asychronous Asychronous

Control Mode 3G/4G/WIFI/ Ethenet/ USB 3G/4G/WIFI/ Ethenet/ USB 3G/4G/WIFI/ Ethenet/ USB

Temperature Operating -40°～+75° -40°～+75° -40°～+75°

Working Humidity 10%–90%RH 10%–90%RH 10%–90%RH

Protection Rating: IP65 IP65 IP65

Power Protection over-temperature/over-cur rent/ over-temperature/over-cur rent/ over-temperature/over-cur rent/

over-voltage protection over-voltage protection over-voltage protection

Screen Weight 23 kg 26 kg 15kg

Package Dimension 1100mm(L) X 500mm(H) X 270mm(W) 1100mm(L) X 500mm(H) X 270mm(W) 960mm(L) X 430mm(H) X 210mm(W)

Gross Weight: 30 kg 32 kg 19kg

Certificates CE.

ROHS CE.

ROHS CE.

ROHS

Company Contact:

• Posted By: Shenzhen NSE Electronics Co.,Ltd

• Phone: 86 755 2823 7438

• Address: Bld 1, Yali Ind Park, TianBao Rd, ShiYan, BaoAn District, Shenzhen, China, Shenzhen , Guangdong , China

• Email:

• Website: https://www.nseled.com/

• Business Description: To be known as a leading portable sign manufacturer, NSE has got rapid-growth in the market in the past 5 years.

  Being an ISO9001 Certified and Government-nominated "Hi-Tech Enterprise", we are continuously investing in the Research and Development of portable and other creative LED display products.

  Currently, we have few patents registered in China.

  Now our LED display products have been sold to more than 60 countries and areas, such as South Africa, Australia, USA, Germany, Spain, Poland, Russia, Australia, Chile, Brazil, Paraguay, Mexico, Thailand , Malaysia, Indonesia , Vietnam, Saudi Arabia, Iran, and so on.

  We were also supplied ODM business to two leading VMS products suppliers in Australia and Brazil.

  We believe that quality and customers' need can be achieved and satisfied only with high & whole-hearted dedication, and persistence in pursuing high performance of the products.

  With strict quality assurance system, we are receiving less than 0.01% compliant of noticeable defects from our products.

  So far, Our products had passed various certificates, such as CE, FCC, ETL, CCC , ROHS ec.

  "Create Value, Display Infinity", NSE will continue to focus on portable sign filed and break new ground on the basis of past achievements, to strive to top-class LED display supplier
