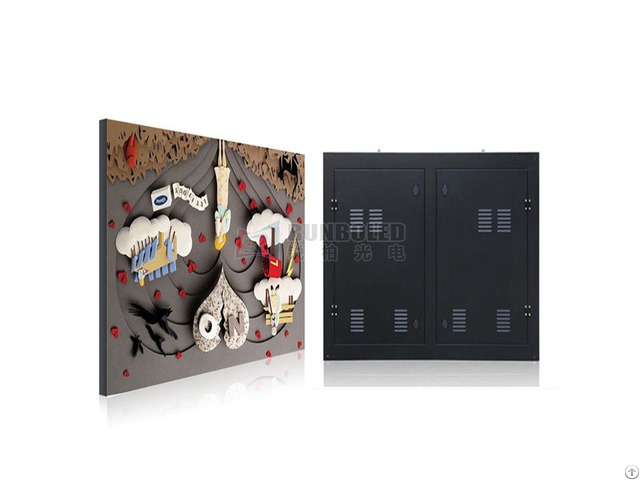

High Quality P10 Indoor Full Color LED Screen for Fix Installation

High Quality P10 LED Screen

P10 Indoor Full Color LED Display is used for big sizes indoor fix installation project which is widely used for shopping mall, conference room, meeting room, school, church and so on.

The best viewing distance for p10 is more than 10m.

We adopt good quality lamps and IC to ensure the excellent performance of our led displays.

Features of our Indoor Fixed Installation LED Screen:

1 - Adopting high quality LED lamps like kinglight or nationstar and patent PCB design for the screen, it essentially ensures long lifetime of the product.

2 - We make a special treatment of anti-electromagnetic wave and adopt distribution scan and modular design for the screen and it works more reliable and stable.

3 - Non-linearity correction technology makes the led screen image exquisite and clear, video images vivid and fidelity.

4 - Precision design of module frame parts controls the deviation of neighbouring modules within 0.1mm and has an excellent flatness without mosaic.

5 - Standard steel cabinet design makes the easy installation of the led display.

6 - Adopting same levels of imported LED chips, high quality and refreshrate IC, low noise power supply, which can guarantee the led screen work smoothly in the environment of -20℃~40℃.

7 - Brightness can be adjusted according to the detailed indoor environment, low attenuation lamp, even current distribution, making the screen low power consumption and good quality.

Specification of Indoor Fixed Installation LED Video Wall:

Parameter Technical of P10 Indoor Fixed Installation LED Screen with Standard Cabinet

Item Model Parameter

LED Module Info.

Pixel Pitch P10 Indoor Fixed Installation LED Lamp SMD3528 IC Driver MBI5124/ICN2153 LED Module Size 320*160mm LED Module Resolution 32*16dots Color Temperature 3000-9000K Drive Mode 1/8 scan

LED Cabinet Info.

Cabinet Size 1280*960*120mm or Customized Cabinet Resolution 128*96 dots Cabinet Material Standard Steel Cabinet LED Module Quantities 4*6=24pcs Cabinet Net Weight 45 kg/pc

LED Display Info.

Best Viewing Distance 10m-100m Viewing Angle H: 140°/ V: 140° Pixel Density 160000dots/㎡ Brightness 800-1000nits/sqm Max.

Power Consumption 800W/㎡ Ave.

Power Consumption 300W/㎡ Refresh Rate 1920Hz-3840H, can be adjusted

Control System Info.

Operating System WIN98/2000/NT/XP Control Method Synchronous display with control PC by DVI or Asynchronous with Wifi/4G/USB Control System Linsn, Nova-star, Colorlight or as you required Display Content Video, DVD, VCD, TV, picture, cartoon, graphics, texts.

etc.

Frame Frequency 50Hz or 60Hz Transmission Distance Multi mode fiber <500m, single mode fiber <30km, internet cable<100m

Operation Info.

Working Temperature -40℃--+60℃ Storage Temperature -30℃--+80℃ Input Voltage AC110V/AC220V Humidity Environment 10%-95% Lifespan 100, 000hours MTBF 10, 000hours Certificate CE, CCC, FCC, ROHS, ISO9001
