    • High Power Pm Optical Circulator 980nm 1030nm 1064nm - China

    price: 60.00 Dollar US$

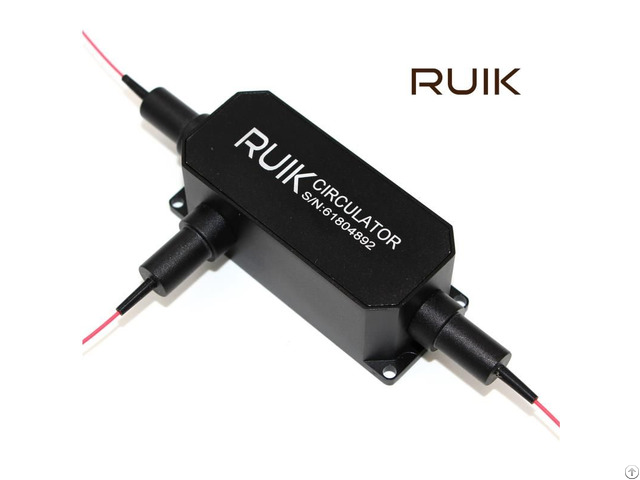

    High Power Pm Optical Circulator 980nm 1030nm 1064nm

    Products Photos Catalog Power Optical Photos Catalog

    Ruik's pm circulator is one type of products, allowing the light to transmit through the route established, from port 1 to port 2, and from port 2 to port 3, blocking the reversed Specifications： Parameters Unit Value

    Center Wavelength nm 1064 or 1030 or 980

    Operating Wavelength Range nm ±5

    Typ.

    Peak Isolation dB 25

    Max.

    Isolation at 23℃ dB 22

    Typ.

    Insertion Loss at 23℃ dB 1.3

    Max.

    Insertion Loss at 23℃ dB 1.5

    Max.

    Polarization Dependent Loss at 23℃, only for PI dB 0.15

    Min.

    Extinction Ratio at 23℃, only for PM dB 20

    Min.

    Return Loss(Input/ Output) dB 45

    Min.

    Cross Talk dB 45

    Max.

    Average Optical Power W 20 or Specified

    Max.

    Peak Power for ns Pulse kW 10 or Specified

    Max.

    Tensile Load N 5

    Package Dimension mm 64x28x26

    Operating Temperature ℃ +10~+50

    Storage Temperature ℃ 0~+60


    Company Contact:


    • Phone: 18929412926

    • Address: Floor 4, Building A, ZhaoHe Industrial Park,, Dongguan , China , China

    • Email: Email


    Published date: April 12, 2020

    • Business Description: RUIK- Tech Communication is a manufacturer and supplier of Optical Passive Components with ISO9001: 2015 certified.

      We design advanced and cost- effective passive components for various industries which include Fiber Laser, Sensing Applications, CATV, Telecommunication, Medical Systems, Gyroscope, etc.

      Our main products include High Power Components up to 100W (20kW), Polarization Maintaining (PM) and Single- mode Fiber Components with ranging from 780nm to 2000nm.

      We also provide Customized components to our customers.

      High power Optical Fiber Components:

      - Optical Fiber Isolator, up 100W

      - Free Space Isolator, up to 100W

      - Optical Circulator, up to 30W

      - Pump Laser Protector

      - Band Pass Filter

      - Nx1 Pump Combiner

      - Cladding Power Stripper

      - Mode Field Adapter

      - (N+1)x1 Pump & Signal Combiner, 200W/port

      Polarization Maintaining Fiber Components:

      - In Line Polarizer/Depolarizer

      - In Line Faraday Isolator

      - Optical Circulator

      - Fused WDM / Coupler

      - Filter WDM / Coupler

      - Fiber DWDM

      - Fiber Mirror

      - Faraday Rotator
