    • High Power Pm Isolator Wdm Hybrid 980 1030 1064nm - China

    price: 50.00 Dollar US$

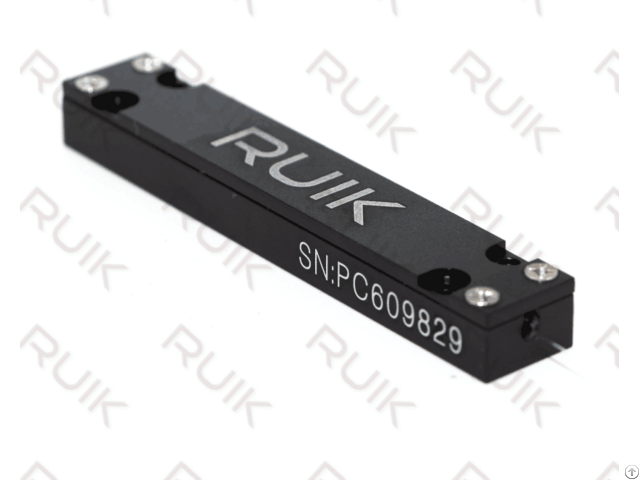

    High Power Pm Isolator Wdm Hybrid 980 1030 1064nm

    Products Photos Catalog Power Isolator Wdm Photos Catalog

    Ruik's Isolator & WDM Hybrid is a device to combine the functions of isolator and WDM device Other name：

    WDM/Isolator Hybrid, PM Isolator & WDM hybrid, Optical Isolator WDM Hybrid device, 980/1550nm WDM/Isolator hybrid, 980/1064nm WDM Isolator, polarization maintaining isolator WDM Specifications： Parameter Signal Channel Signal Wavelength Range (nm) 1064±10 or 1030±10

    Max.

    Insertion Loss, at 23℃ (dB) 1.5

    Typ.

    Peak Signal Reversed Isolation, at 23℃ (dB) 30

    Min.

    Signal Reversed Isolation, at 23℃ (dB) 25

    Min.

    Isolation (Com to Pass @ Ref band Wavelength) (dB) 30 Reflection Channel Wavelength Range nm 960~990 Max.

    Insertion Loss (dB) 0.8

    Min.

    Isolation (Com to Ref @ Pass band Wavelength) (dB) 15 Max.

    Polarization Dependent Loss at 23℃, only for PI type (dB) 0.15

    Min.

    Extinction Ratio at 23℃, only for PM type (Signal/ Pump Route) (dB) 20/18

    Min.

    Return Loss (dB) 50

    Max.

    Optical Power(CW) (W) 20 or Max.

    Peak Power for ns Pulse (kW) 10 or Specified

    Max.

    Tensile Load (N) 5

    Operating Temperature (℃) 5~+55

    Storage Temperature (℃) -0~+75


    Company Contact:


    • Phone: 18929412926

    • Address: Floor 4, Building A, ZhaoHe Industrial Park,, Dongguan , China , China

    • Email: Email


    Published date: April 12, 2020

    • Business Description: RUIK- Tech Communication is a manufacturer and supplier of Optical Passive Components with ISO9001: 2015 certified.

      We design advanced and cost- effective passive components for various industries which include Fiber Laser, Sensing Applications, CATV, Telecommunication, Medical Systems, Gyroscope, etc.

      Our main products include High Power Components up to 100W (20kW), Polarization Maintaining (PM) and Single- mode Fiber Components with ranging from 780nm to 2000nm.

      We also provide Customized components to our customers.

      High power Optical Fiber Components:

      - Optical Fiber Isolator, up 100W

      - Free Space Isolator, up to 100W

      - Optical Circulator, up to 30W

      - Pump Laser Protector

      - Band Pass Filter

      - Nx1 Pump Combiner

      - Cladding Power Stripper

      - Mode Field Adapter

      - (N+1)x1 Pump & Signal Combiner, 200W/port

      Polarization Maintaining Fiber Components:

      - In Line Polarizer/Depolarizer

      - In Line Faraday Isolator

      - Optical Circulator

      - Fused WDM / Coupler

      - Filter WDM / Coupler

      - Fiber DWDM

      - Fiber Mirror

      - Faraday Rotator
