Gpon Olt Sfp C Optical Module - China

GPON OLT SFP C+, 20km, TX 1490nm 2.488Gbps, RX 1310nm 1.244Gbps, SFP form-factor, SC/UPC Receptacle, It primarily enables bandwidth 2.5G optical links over single-mode fiber terminated with SC/UPC simplex connectors and can be used in commercial temperature environment for interoperability with 1000BASE-BX interfaces.

PRODUCT DESCRIPTION

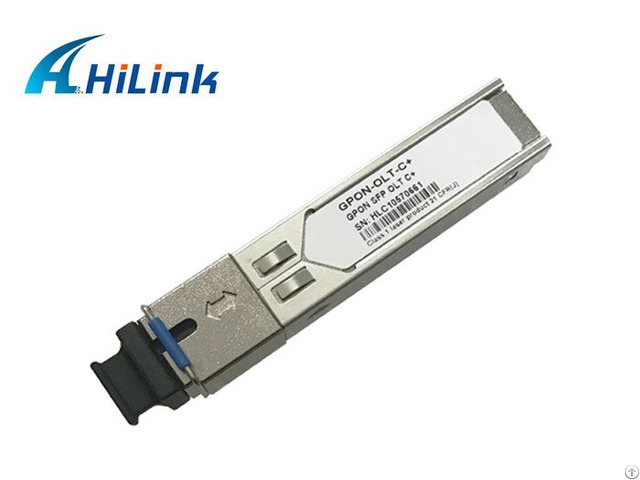

Hilink Gpon Olt Class C+ transceiver 20km SFP

Product Features

Support ITU-T G.

984.2 GPON OLT C+ application

Single fiber bi-directional data links with symmetric 2.488Gbps Tx and 1.244Gbps Rx

1490nm continuous-mode transmitter with DFB LD

1310nm burst-mode receiver with APD-TIA

2-wire interface for integrated digital diagnostic Monitoring

Receiver RESET, Signal Detect, RSSI function indication (RESET, RX_SD, RSSI)

SFP package with SC/UPC receptacle optical interface

Single +3.3V power supply

Operation case temperature -40~85°C for industrial and 0~70°C for commercial

RoHS6 compliance
