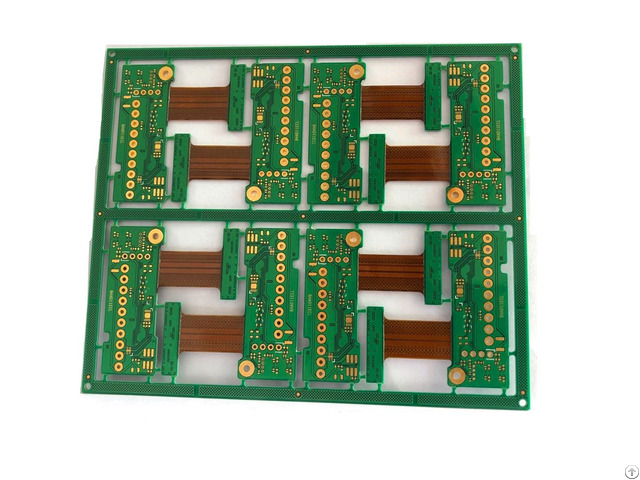

For Automotive Medical Devices Oem Electronic Rigid Flexible Pcb - China
price: 120.00 Dollar US$
Layer Counts: 2-24 layer
Base Material: PI/FR-4/HIGH TG FR-4/CEM-1/CEM-3
Copper foil thickness: 1oz / 1/2oz / 1/3oz
PI thickness: 25μm / 12.5μm
Board thickness: 0.15mm -3.6mm Adhesive: 13μm
Max.
board size: 600*800 mm
Product thickness tolerance: ±0.03mm Min.
Hole Diameter: 0.1mm
Min.
Line Width/ Distance: 0.06mm
Etching tolerance: ±0.015mm PTH Hole dia.
tolerance: ±0.03mm
NPTH Hole dia.
tolerance: ±0.05mm
Outline Dimension tolerance: ±0.1mm Outline profile: Punching / Laser cut / Drilled
Surface finish: HASL / OSP / ENIG / Immersion silver/Tin/Ni
Solder mask color: Multi-color
Company Contact:
- Posted By: Shenzhen Derek Tech Co, Ltd
- Phone: 86-15959214177
- Address: Xinqiao, Shajing, Shenzhen , Guangdong , China
- Email:
Published date: April 16, 2019
- Business Description: Derek Tech Co.
Ltd. is a senior PCB manufacture in Shenzhen, China.
We providing some of the most innovative printed circuit board technologies and highest quality standards in the industry.
Our core competencies are Multi-layer PCB&PCBA products.
Over 120 employees, average tenure 11 years, their rich experience enable us to supply our clients with up to date products of stable good quality.
Servicing the defense, aerospace, medical, industrial, clean technology, mobile & telecom markets.
You can count on us to meet your needs from the simplest boards to the most complex designs for small quantity and large scale production.
