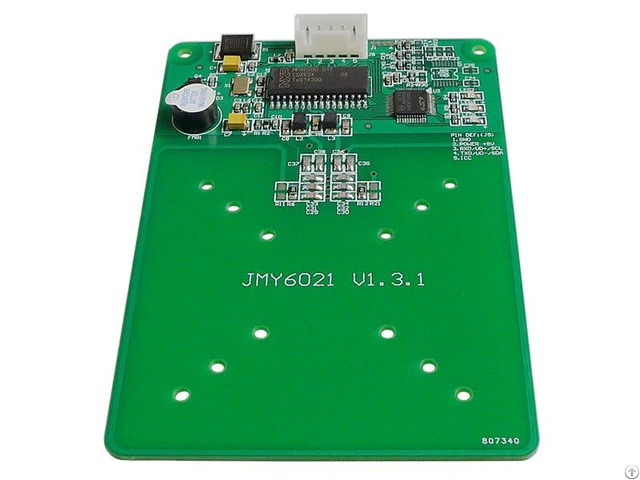

Embedded Reader Modules Jmy6021 - China

JMY6021 is a series of RFID read/write module with IIC, UART, RS232C and USB communication port.

It has various functions and supports multi ISO/IEC standard of contactless card.

The RF protocol is complex, but the designer combined some frequent used command of RF card and then user could operate the cards with full function by sending simple command to the module.

The module and antenna is integrated.

The impedance between RF circuit and antenna was tuned by impedance analyzer, so the module has excellent performance and stability.

It has EMV2010 certification ability in RF part, and with 2 SAM slots.

Also very popular full fill payment system usage.

Main Characteristics

• Modules integrated antenna, excellent consistency and stability

• EMV2010 certification ability in RF part

• 2 SAM slots, full fill payment system usage

• USB HID interface, convenience to use on PC Qualifications

• PCD: NXP MF RC500, MF RC531, SL RC400, CL RC632

• PCB Layers：4

• Working frequency: 13.56MHz

• Supported standard: ISO14443A, ISO14443B, ISO15693, ISO7816

• Anti collision ability: Full function anti collision; be able to set multi-cards or single card

• Auto detecting card: Supported, default OFF, could be set

• SAM slots: 2, T=0 & T=1 9600, 19200, 38400, 55800, 57600, 115200bps

• Data FLASH: 512 Bytes

• Power supply: DC 5V (±10%)

• Interface: USB HID, RS232C, UART or IIC by order

• Interface level: UART/IIC 3.3V (5V tolerance)

• Communication speed: IIC: Max.

200Kbps UART: 19200bps, 9600bps, 38400bps, 57600bps, 115200bps USB: 2.0 HID class

• Max.

command length: JCP04: 253bytes JCP05: 510bytes

• Power consumption: Max.

150mA

• Operating distance: 100mm (M1 typical distance, depending on card quality)

• Dimension: 100mm * 70mm * 10.6mm

• Weight: About 30g

• ISP: Supported

• RoHS: By order

• CE certification: in plan (Jan.

17, 2015, soon)

• Operating temperature: -25 to +85°C

• Storage temperature: -40 to +125°C If you want to get more information about 13.56MHz RFID Desktop Reader or Embedded Reader Modules, welcome contact with me in any time.
