Electrical Distribution Box Making Machine - China

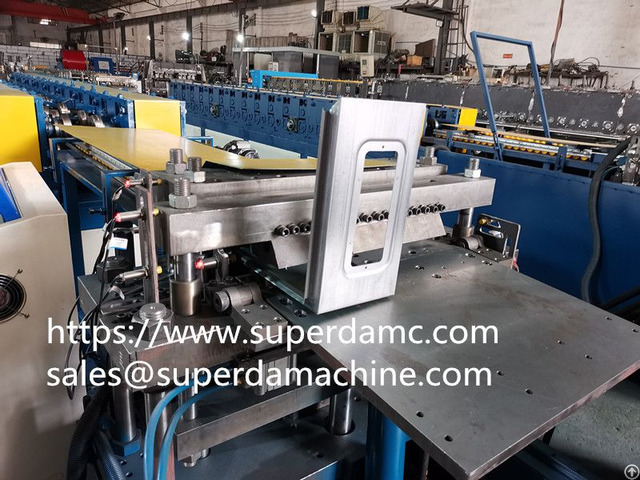

Superda electrical panel box roll forming machine production line with various size for making industry electrical enclosure.

Automatic width adjustable, length adjustable, depth adjustable, door hinge hole, cable hole numbers can be easy setting by PLC.

Panel Width Changeable Electrical Box Roll Forming Machine Production Line Product specifications: height adjustable 300-1200mm, depth adjustable 150-350mm.

Electrical enclosure Production machine technical parameters Item Technology parameter Material Material cold-roll strip, galvanized steel strip Thickness 1.0-1.5mm(base on 1.5mm design, when T.

1mm effect alittle not good as 1.5mm) Coil Inner Ф360—Ф510 Process Form Speed 0-13m/min Length Not limit Quality Length Precision L≤1000mm：±0.5㎜ Straight, Deflection L≤1000mm, Bend no more than 1mm；Deflection no more than 2mm Forming size As per design Electrical distribution board roll forming machine production line process Uncoiler→ Straightening→Servo feeder→Hydraulic device→ Guide device → Roll forming machine →Bending device Distribution box production line technology explaination This production line is equipment for production of distribution boxes.

The strip coil to be processed is manually placed on the uncoiler, and then corrected and tensioned.

After leveling, it enters the hydraulic pre-punching and punching notch, and is sent to the forming machine by the guide device to form.

Under the frictional damping action of the forming roller and pressure roller, after entering the bending part at a linear speed of 0-13m, the box is cut and bent as required, and then manually packed away.

This production line produces 2-3 enclosures per minute.

the production box quantity speed according to different product specifications
