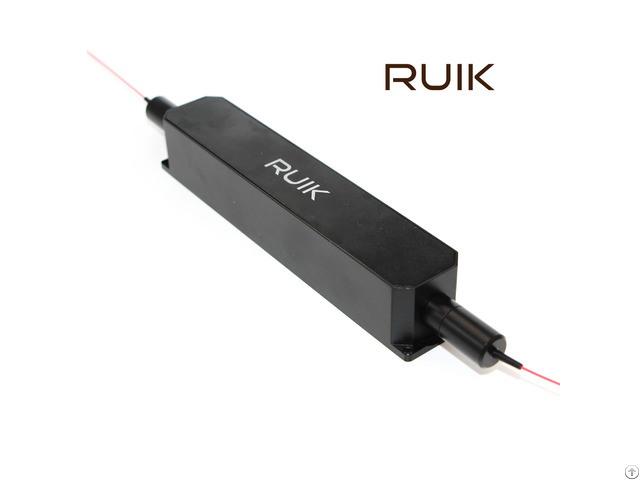

Dual Stage High Power Optical Pm Fiber Isolator 2w 10w 980nm 1030nm 1064nm - China

Ruik's polarization maintaining optical isolator is a device, which allows the light to transmit through the passive route from input to output, while blocking the reversed direction.

Specifications

Parameters Unit Value

Center Wavelength nm 1064 or 1030 or 980 or 915 or 850 or 780

Operating Wavelength Range nm ±5

Typ.

Peak Isolation at 23℃ dB 65

Min.

Isolation at 23℃ dB 55

Typ.

Insertion Loss at 23℃ dB 0.8

Max.

Insertion Loss at 23℃ dB 1.2

Max.

Polarization Dependent Loss at 23℃, only for PI dB 0.2

Min.

Extinction Ratio at 23℃, only for PM dB 20

Min.

Return Loss(Input /Output) dB 45

Max.

Average Optical Power W 20 or Specified

Max.

Peak Power for ns Pulse kW 10 or Specified

Max.

Tensile Load N 5

Package Dimension mm 150x28x26

Operating Temperature ℃ +10~+50

Storage Temperature ℃ 0~+60 Our main products include High Power Components up to 100W (20kW), Polarization Maintaining (PM) and Single-mode Fiber Components with ranging from 780nm to 2000nm.

We also provide Customized components to our customers.

High power Optical Fiber Components:

-Optical Fiber Isolator, up 100W;

-Free Space Isolator, up to 100W;

-Optical Circulator, up to 30W;

-Pump Laser Protector;

-Band Pass Filter;

-Nx1 Pump Combiner;

-Cladding Power Stripper;

-Mode Field Adapter;

-(N+1)x1 Pump & Signal Combiner, 200W/port; Polarization Maintaining Fiber Components:

-In Line Polarizer/Depolarizer;


-In Line Faraday Isolator;

-Optical Circulator;

-Fused WDM / Coupler;

-Filter WDM / Coupler;

-Fiber DWDM

-Fiber Mirror;

-Faraday Rotator;

-Fiber Patch cord / Jumper;

-PLC Splitter Module;

-Tap / WDM / Isolator Hybrid;

Manual Variable Optical Attenuator;

-1x2 Polarization Beam Splitter / Combiner (PBS/C)

-1x2 Isolator & Polarization Beam Splitter / Combiner (IPBS/C)
