CT & VT Accuracy Measurement Testing SystemGeneral Type

1 - Measure item: Ratio Error and Phase Error of the CT& PT 2 - Complying with ANSI / IEEE C57.13 Standard or IEC 60044-1 Standard (According to the User`s requirements) 3 - Testing system included:

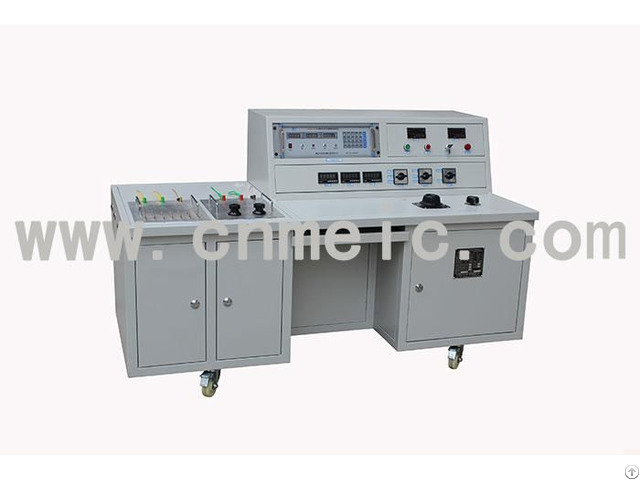

HES Series Control Bench

HES-1C Series Transformer Tester

FY Series Current Transformer Burden

HLS Series Standard Current Transformer (with Current Source)

FY Series Voltage Transformer Burden

HJS Seires Standard Voltage Transformer (with Voltage Source)

High Current Testing Cables

Secondary Testing Cables of the CT&VT 4 - Function Profile of the HES Series Control Bench:

Input Voltage: AC 220V±10% 50/60Hz

Rated Capacity: 10kVA, 15kVA, 20kVA, 30kVA

Output Voltage: Provided the Coarse adjustment & Fine adjustment

CT Demagnetization Function: Provided the open-circuit & closed-circuit demagnetization

Protection functions: Provided overcurrent & overvoltage protection

The Bench can be installed: Transformer Tester, CT Burden, PT Burden etc.

The Bench Structure: Horizontal structure or Vertical structure 5 - Operation Model:

Products Description Model Control Model

Control Bench HES Series Manual Adjustment

Digital Transformer Tester HES-1C Automatically upload the error datas to PC

Standard CT (with Current Source) HLS Series Manual Connection

Standard PT (with Voltage Source) HJS Series Manual Connection

CT/PT Burden FY Series Manual Control 6 - Remark:

Accuracy class of the Standard CT & PT 0.05%, 0.02%, 0.01% or other

Primary current range of the standard CT: 5-2000A.

5-3150A.

5-5000A or other current value, According to user`s

requirements

Rated primary voltage value: 6kV(6/√3kV), 10kV(10/√3kV), 20kV(20/√3kV), 35 kV(35/√3kV) or other voltage value, According to user`s

requirements

Rated secondary voltage value: 100V, 100/√3V, 100/3V or other voltage value, According to user`s

requirements

Frequency: 50Hz or 60Hz CNME produces market-leading high voltage test equipment for proof testing, diagnostic evaluation, and preventive maintenance testing of electrical cables and apparatus designed to operate under medium to high voltage conditions.
